Engine Mounting

WARNING: This page is about a different variant/trim than selected.

Courtesy of SUBARU OF AMERICA, INC.

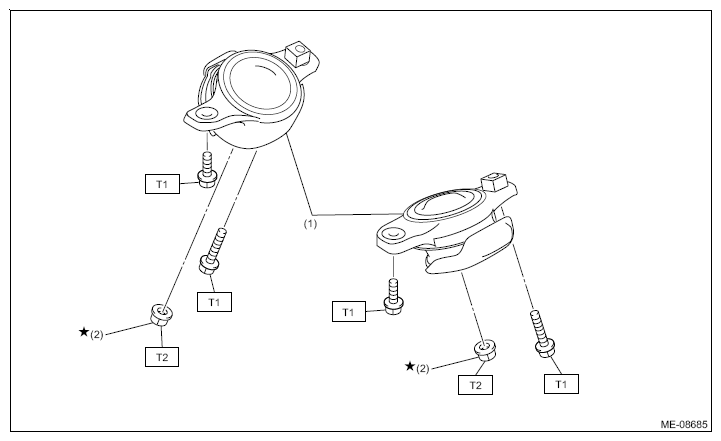

(1)	Front cushion rubber
(2)	Nut

Tightening torque: N.m (kgf-m, ft-lb)

T1: 35 (3.6, 25.8)

T2: 90 (9.2, 66.4)
