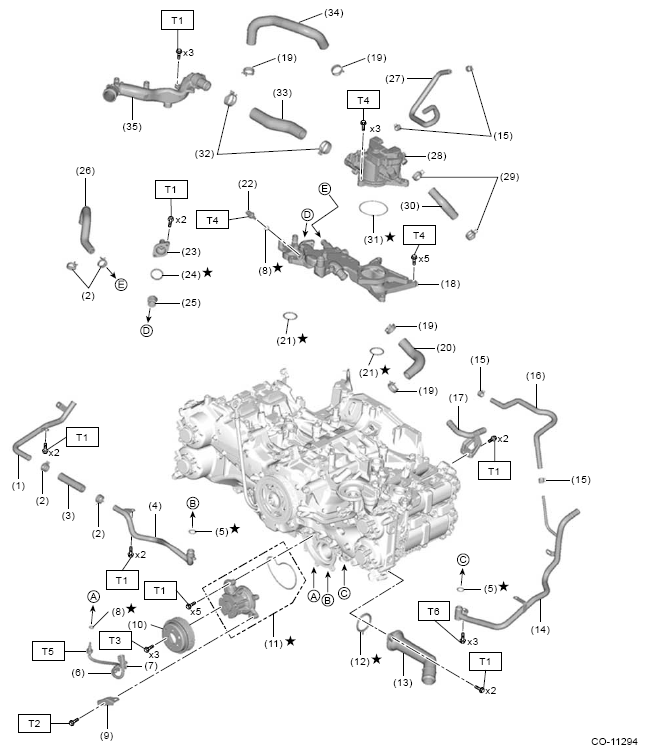

Engine Cooling System
WARNING: This page is about a different variant/trim than selected.
| (1) | Water pipe RH |
| (2) | Clip |
| (3) | Water hose |
| (4) | Center water pipe |
| (5) | O-ring |
| (6) | Inlet engine coolant temperature sensor |
| (7) | Clip |
| (8) | Gasket |
| (9) | Harness stay |
| (10) | Water pump pulley |
| (11) | Water pump ASSY |
| (12) | Gasket |
| (13) | Thermostat cover |
| (14) | Water pipe LH |
| (15) | Clip |
| (16) | Preheater hose |
| (17) | Heater hose pipe |
| (18) | Water tank pipe ASSY No. 2 |
| (19) | Clip |
| (20) | Water hose |
| (21) | O-ring |
| (22) | Outlet engine coolant temperature sensor |
| (23) | Thermostat cover |
| (24) | Gasket |
| (25) | Thermostat |
| (26) | Water hose |
| (27) | Preheater hose |
| (28) | Thermo control valve ASSY |
| (29) | Clip |
| (30) | Water hose |
| (31) | Gasket |
| (32) | Clip |
| (33) | Water hose |
| (34) | Water hose |
| (35) | Water tank pipe ASSY No. 1 |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 8.5 (0.9, 6.3)
T3: 14 (1.4, 10.3)
T4: 16 (1.6, 11.8)
T5: 18 (1.8, 13.3)
T6: Ref. to COOLING (H4DO)>WATER PIPE>INSTALLATION>WATER PIPE LH .
