Active Grille Shutter

WARNING: This page is about a different variant/trim than selected.

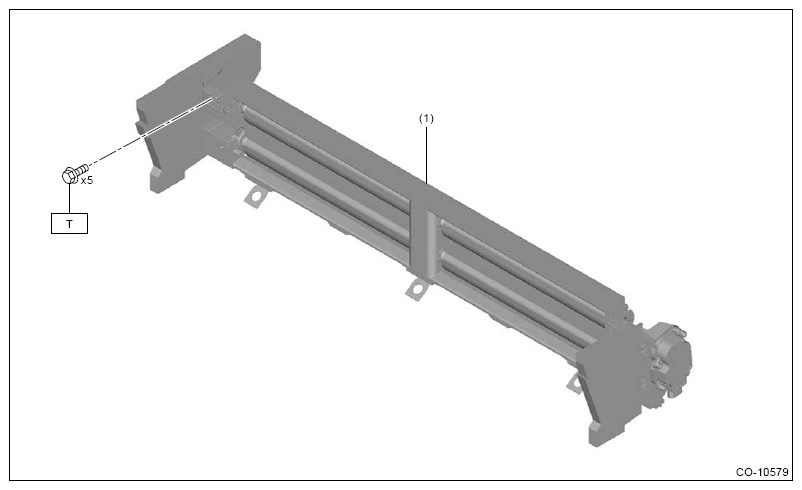

G16383676Courtesy of SUBARU OF AMERICA, INC.
(1) Active grille shutter

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
