Continuously Variable Transmission (Diagnostics) (1 Of 2)
>>
General Description
>>
System Block Diagram
System Block Diagram

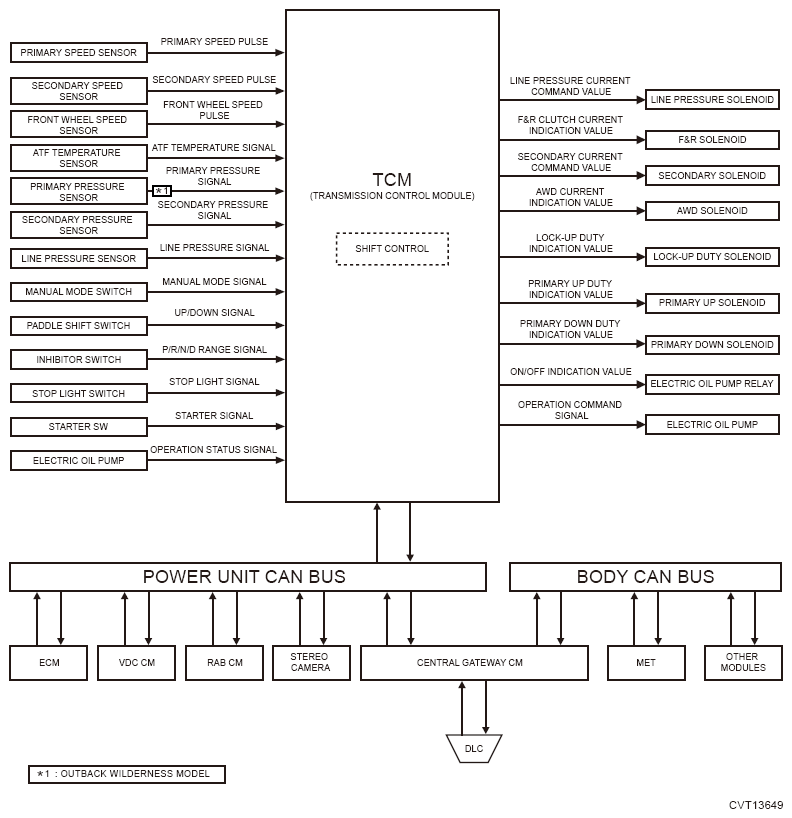

ENGINE TYPE FB
Courtesy of SUBARU OF AMERICA, INC.

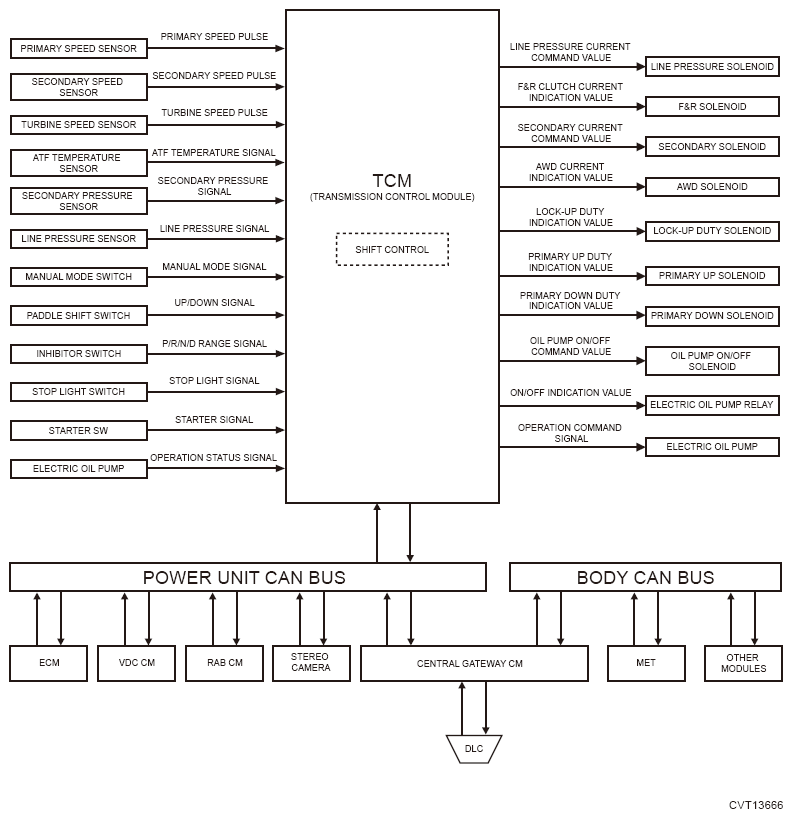

ENGINE TYPE FA
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
