Torque Converter & Converter Case

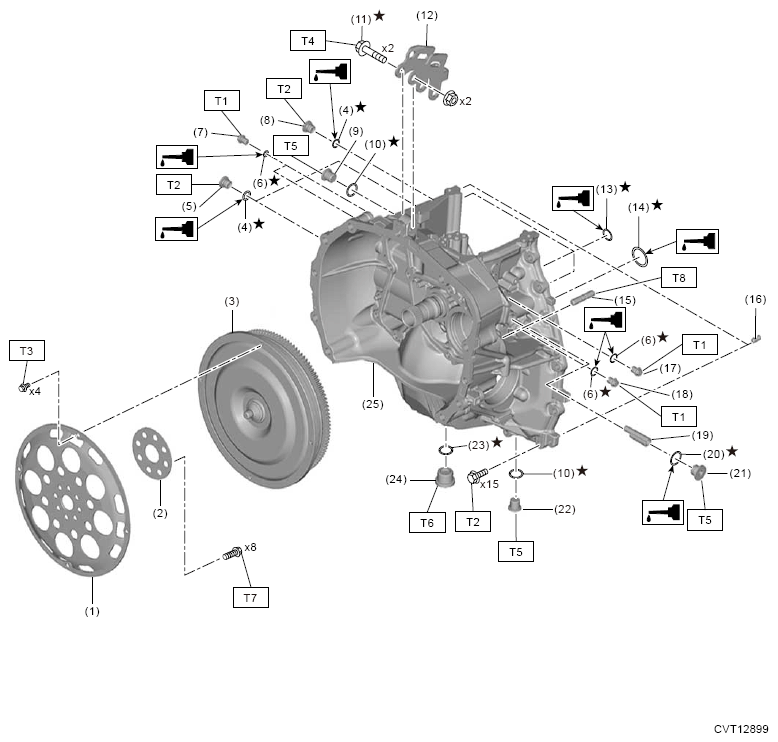

NOTE: The shape of the test plug (transfer clutch pressure) varies depending on the converter case shape. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSFER CLUTCH PRESSURE TEST>LOCATION .

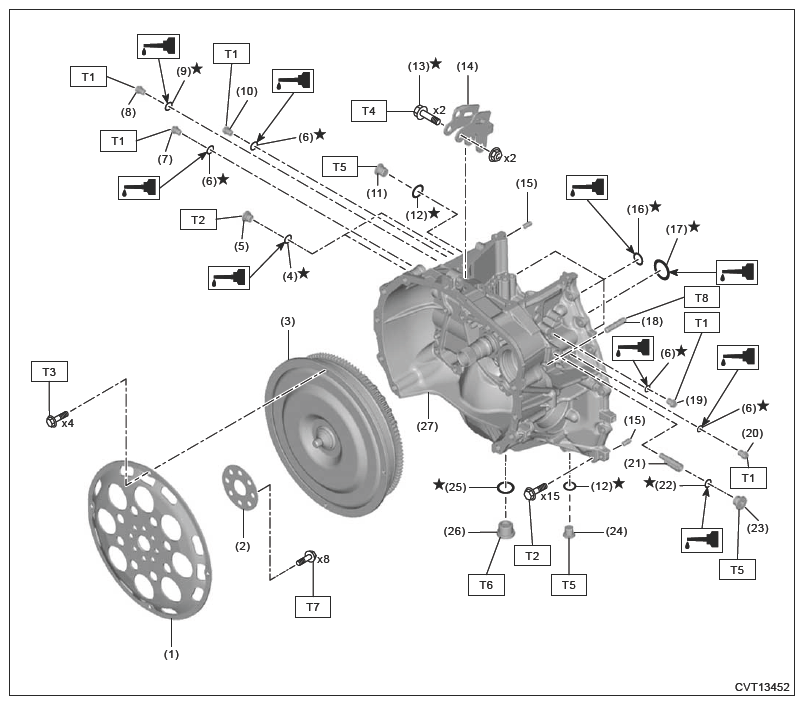

For outer hexagonal test plug (transfer clutch pressure)

Courtesy of SUBARU OF AMERICA, INC.

(1)	Drive plate
(2)	Reinforcement drive plate
(3)	Torque converter
(4)	O-ring
(5)	Plug
(6)	O-ring
(7)	Plug
(8)	Plug
(9)	O-ring
(10)	Test plug (transfer clutch pressure)
(11)	Filler plug (differential gear oil)
(12)	Gasket
(13)	Bolt
(14)	Pitching stopper bracket
(15)	Knock pin
(16)	O-ring
(17)	O-ring
(18)	Stud bolt
(19)	Test plug (line pressure)
(20)	Test plug (secondary pressure)
(21)	Oil guide
(22)	O-ring
(23)	Plug
(24)	Overflow plug
(25)	Gasket
(26)	Drain plug
(27)	Converter case

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 22 (2.2, 16.2)

T3: 25 (2.5, 18.4)

T4: 32 (3.3, 23.6)

T5: 50 (5.1, 36.9)

T6: 70 (7.1, 51.6)
