Inrush Current Reduction Relay: Installation
WARNING: This page is about a different variant/trim than selected.

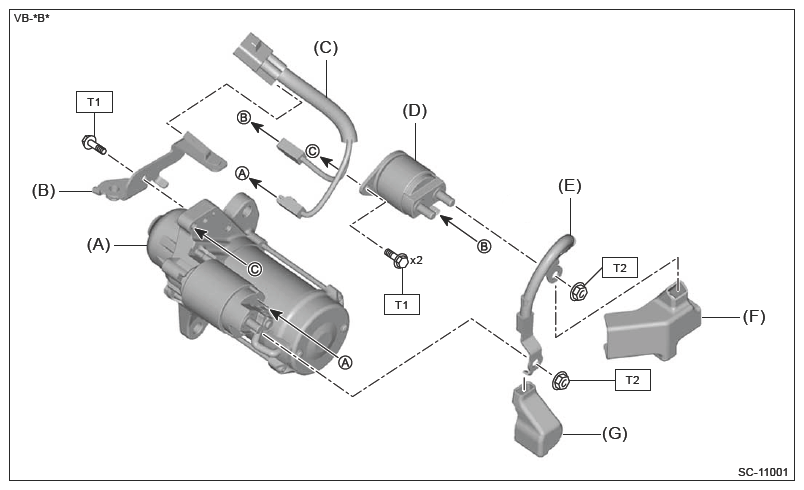

| (A) | Starter |
| (B) | Cable stay |
| (C) | Adapter harness (G) Cap |
| (D) | ICR relay |
| (E) | Motor cable |
| (F) | Cap |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 11 (1.1, 8.1)
- Install the ICR relay.
- Install the motor cable.CAUTION: Install the motor cable while not letting it contact the magnet switch external parts.
- Install the cable stay and adapter harness.
- Install the starter. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>STARTER>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
