Heat Shield Cover
WARNING: This page is about a different variant/trim than selected.
 Courtesy of SUBARU OF AMERICA, INC.
|

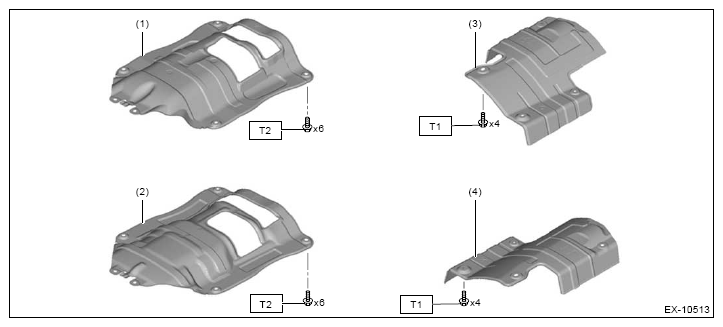

| (1) |
Center exhaust cover (sedan model) |
| (2) |
Center exhaust cover (except for sedan model) |
| (3) |
Rear exhaust cover RH |
| (4) |
Rear exhaust cover LH |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 10 (1.0, 7.4)
T2: 18 (1.8, 13.3)
