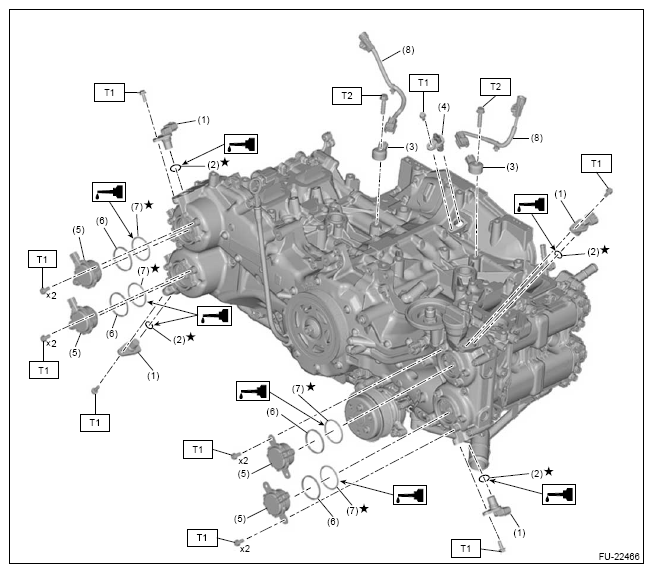

Crankshaft Position Sensor, Camshaft Position Sensor, Knock Sensor And Oil
CONTROL SOLENOID
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Camshaft position sensor |
| (2) |
O-ring |
| (3) |
Knock sensor |
| (4) |
Crankshaft position sensor |
| (5) |
Oil control solenoid |
| (6) |
Back-up ring |
| (7) |
O-ring |
| (8) |
Coupling harness |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 25 (2.5, 18.4)
