Parking Brake Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly front. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  3. Remove the cord assembly console from the switch assembly EPB.
    1. Disconnect the harness connector.
    2. Release the clamp.
    G16387215Courtesy of SUBARU OF AMERICA, INC.

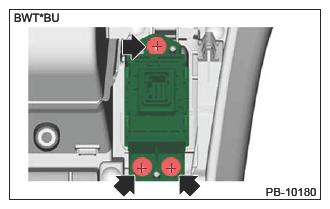

  4. Remove the screws to remove the switch assembly EPB.
G16387216Courtesy of SUBARU OF AMERICA, INC.
