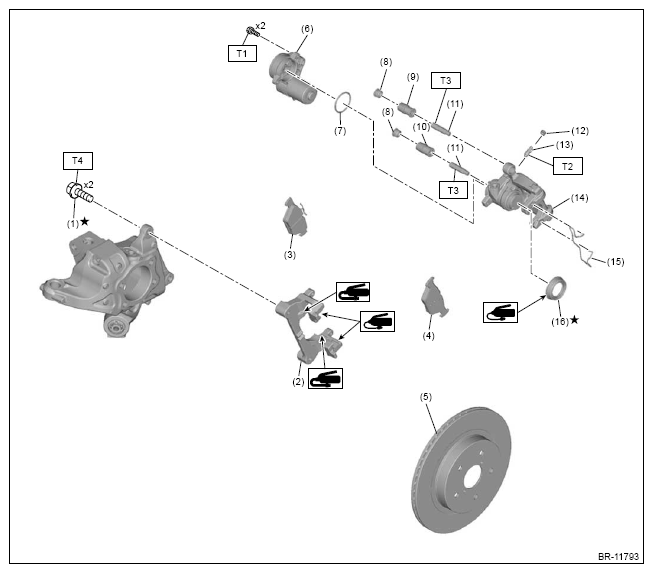

Rear Disc Brake
| (1) | Mounting bolt |
| (2) | Support rear disc brake |
| (3) | Pad COMPL inner |
| (4) | Pad COMPL outer |
| (5) | Brake disc rear |
| (6) | Parking brake actuator*1 *2 |
| (7) | O-ring*2 |
| (8) | Cap |
| (9) | Pin boot A |
| (10) | Pin boot B |
| (11) | Guide pin rear brake |
| (12) | Bleeder cap |
| (13) | Bleeder screw |
| (14) | Caliper body*2 |
| (15) | Pad clip |
| (16) | Boot piston |
* 1: Do not reuse it when the emergency release of parking brake was performed or when the actuator has a malfunction.
*2: When replacing the parking brake actuator or the caliper body, always replace the O-ring with the supplied new part.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 8 (0.8, 5.9)
T2: 17 (1.7, 12.5)
T3: 25 (2.5, 18.4)
T4: 73 (7.4, 53.8)
