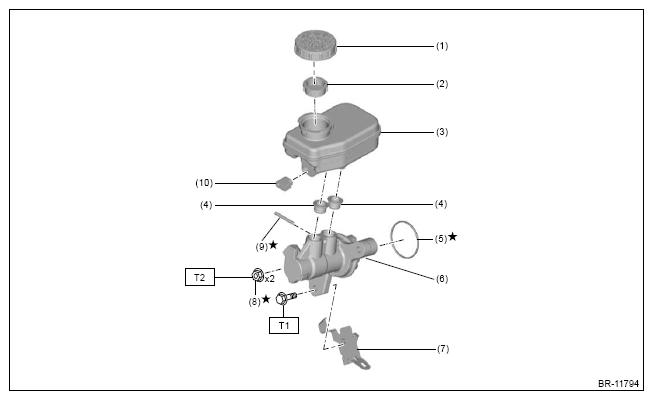

Master Cylinder
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Cap reservoir COMPL |
| (2) |
Filter |
| (3) |
Oil reservoir COMPL |
| (4) |
Seal reservoir |
| (5) |
Cylinder seal ASSY |
| (6) |
Master cylinder ASSY |
| (7) |
Bracket harness electric booster |
| (8) |
Nut |
| (9) |
Pin |
| (10) |
Level indicator |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 18 (1.8, 13.3)
T2: 20 (2.0, 14.8)
