Model With Automatic Anti-Glare Mirror

CAUTION: Be careful not to damage the mirror surface and the glass windshield.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly stereo camera. Ref. to EYESIGHT>STEREO CAMERA>REMOVAL .
  3. Remove the mirror assembly inner rearview EC.
    1. Remove the connector lock, and disconnect the connector.

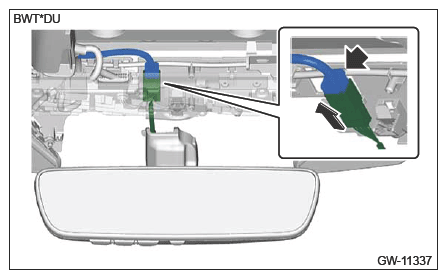

      G16386211Courtesy of SUBARU OF AMERICA, INC.
    2. Tilt the mirror surface so that the mirror assembly inner rearview EC does not come in contact with peripheral parts.
    3. Turn the mirror assembly inner rearview EC by 60° in the direction of the arrow to remove.

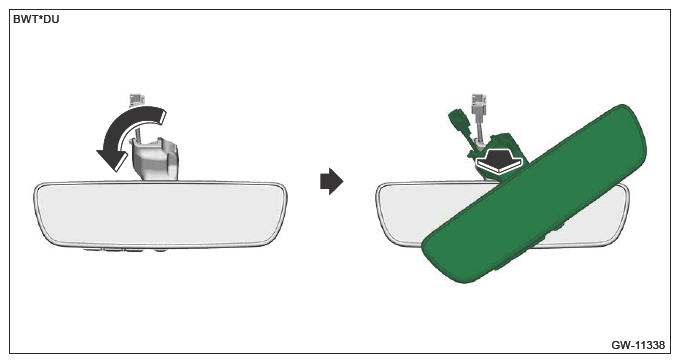

      G16386212Courtesy of SUBARU OF AMERICA, INC.
  4. Replace the glass windshield if the base inner mirror is damaged.
