Outback Model

  1. Remove the reflex reflector assembly.

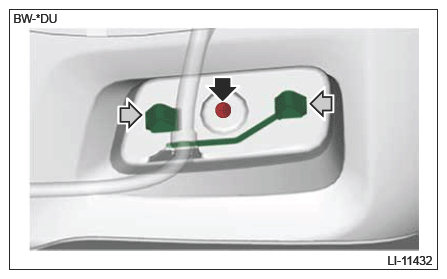

    1. From behind the bumper face rear, remove the screws and release the claws and remove the reflex reflector assembly.
G16385997Courtesy of SUBARU OF AMERICA, INC.
