Headlight Assembly: Removal

CAUTION: Do not perform work with wet hands, because there is a possibility of electrical shock.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct.
  3. Remove the clips, and remove the cover UPR front.

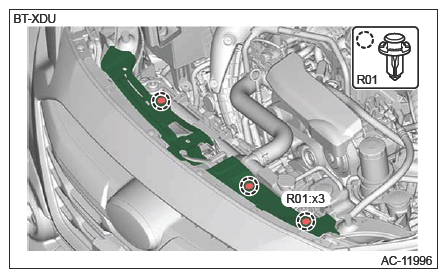

    G16390030Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .
  5. Remove the bolts and clips, and remove the energy absorber plate UPR.

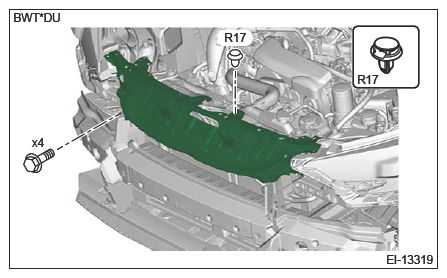

    G16385915Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the clip, and remove the cover fender UPR.

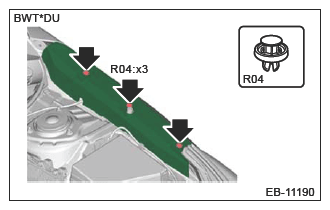

    G16385916Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the access buzzer. (When the light assembly head on the left side is removed) Ref. to SECURITY AND LOCKS>ACCESS BUZZER>REMOVAL .
  8. Remove the bolts and clips, and remove the bracket corner front.

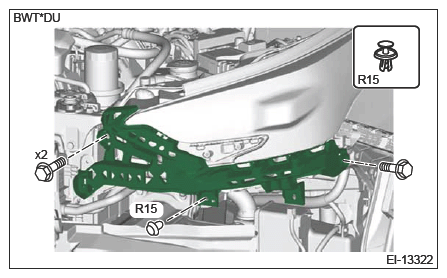

    G16385917Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the light assembly head.
    CAUTION: Be careful not to damage the headlight assembly and the fender COMPL front.
    1. Disconnect the connector.

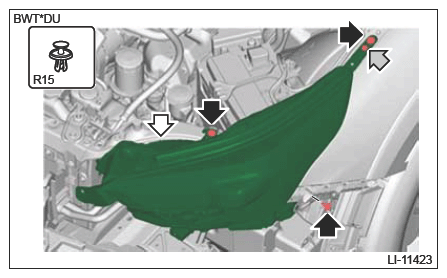

    2. Remove the bolts and clips, and remove the light assembly head.
G16385918Courtesy of SUBARU OF AMERICA, INC.
