System Block Diagram

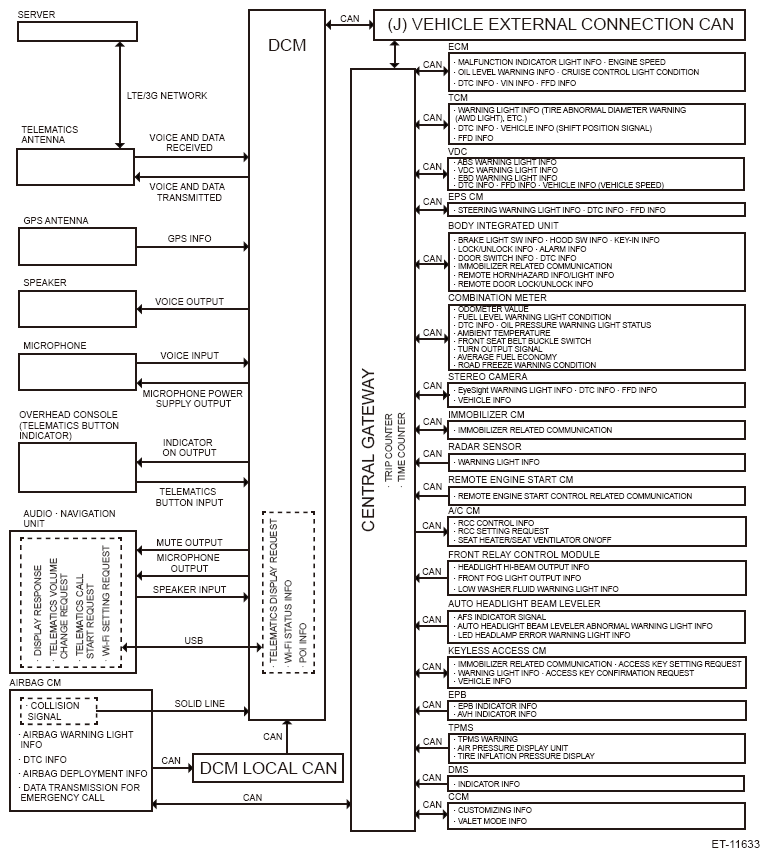

Main signals used between DCM and relevant Control Module

G16391238Courtesy of SUBARU OF AMERICA, INC.
