Wide Angle Mono Camera

  1. Install the adapter cord.
  2. Install the lens hood assembly.
    CAUTION:

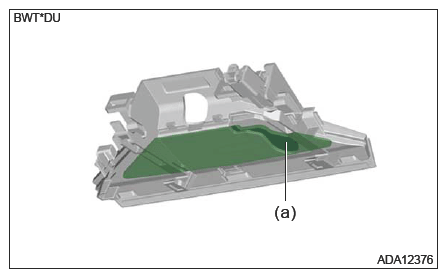

    • Do not hold the insulation portion (a) of the lens hood assembly. The elements inside may get damaged, causing malfunction.
      G16387698Courtesy of SUBARU OF AMERICA, INC.
    • Do not touch the top coating surface of the lens hood assembly. If there are scratches or dirt, the camera adjustment and inspection may not be able to be performed properly.
    1. Remove the paper covering the lens hood assembly.
    2. Engage the claws and clips with the camera bracket.
      CAUTION: Check that the claws and clips are securely engaged.
    3. Connect the connector.
  3. Install the wide angle mono camera and the cover assembly wide angle mono camera. Ref. to EYESIGHT>WIDE ANGLE MONO CAMERA>INSTALLATION .
  4. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
