Cruise Control Command Switch: Inspection

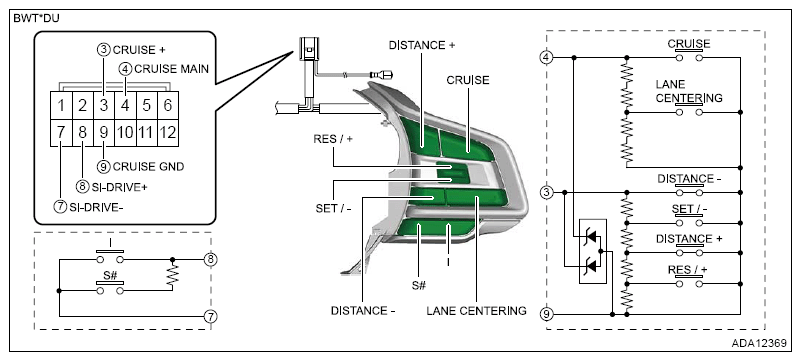

Measure the resistance between connector terminals.

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions		Standard
3 - 9	DISTANCE- SET/- DISTANCE+ RES/+	All OFF	Approx. 4, 020 Ω
	DISTANCE-	ON	Less than 1 Ω
	SET/-	ON	Approx. 250 Ω
	DISTANCE+	ON	Approx. 680 Ω
	RES/+	ON	Approx. 1, 470 Ω
4 - 9	CRUISE LANE CENTERING	All OFF	Approx. 4, 020 Ω
	CRUISE	ON	Less than 1 Ω
	LANE CENTERING	ON	Approx. 680 Ω
8 - 7	I S#	All OFF	3 MΩ or more
	I	ON	Less than 1 Ω
	S#	ON	Approx. 1, 800 Ω

Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.

CAUTION: When applying battery voltage, do not mix up the positive (+) side and the negative (-) side.
Incorrect polarity connection may cause LED damage inside the switch.

Terminal No.	Inspection conditions	Specification
10 (+) - 11 (-)	Apply battery voltage	Light ON

Replace the EyeSight steering switch if it is found defective.
