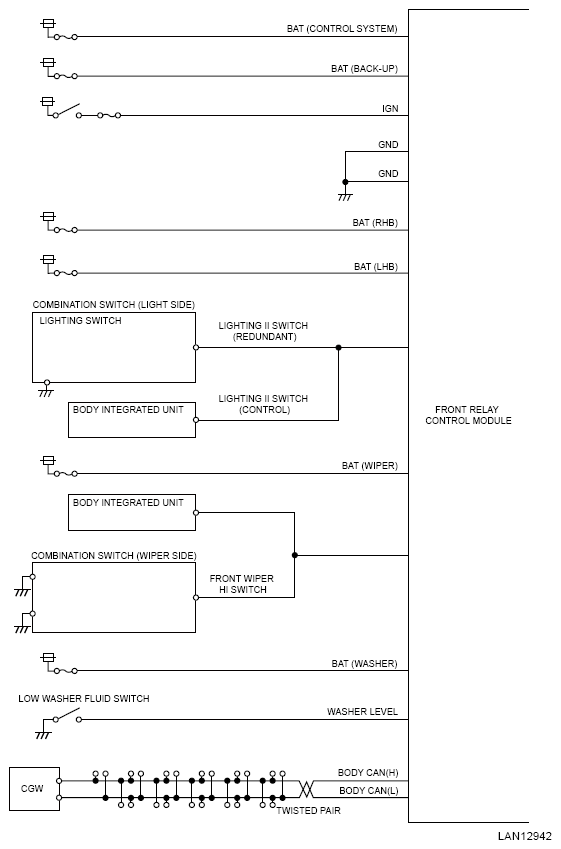

Home >> Subaru >> 2023 >> Outback Base >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Front Relay Control Module (Diagnostics) >> General Description >> System Block Diagram
