Outback Base
>>
Repair and Diagnosis (Single Page)
>>
Steering
>>
Power Steering System (Diagnostics)
>>
General Description
>>

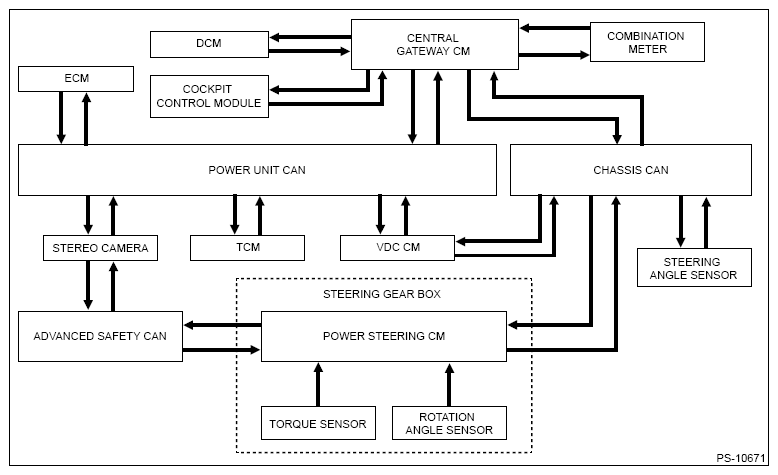

System Block Diagram
System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
