Component Description
Ambient temperature sensor is connected to combination meter. ECM receives the data of ambient temperature sensor via CAN communication with combination meter.
 Courtesy of SUBARU OF AMERICA, INC.
|

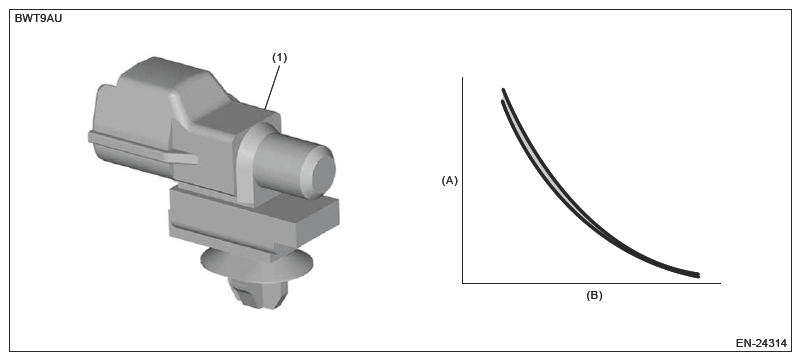

| (A) |
Resistance value (kΩ) |
| (B) |
Ambient air temperature (°C (°F)) |
| (1) |
Ambient sensor |
