Reverse Automatic Braking Control Module

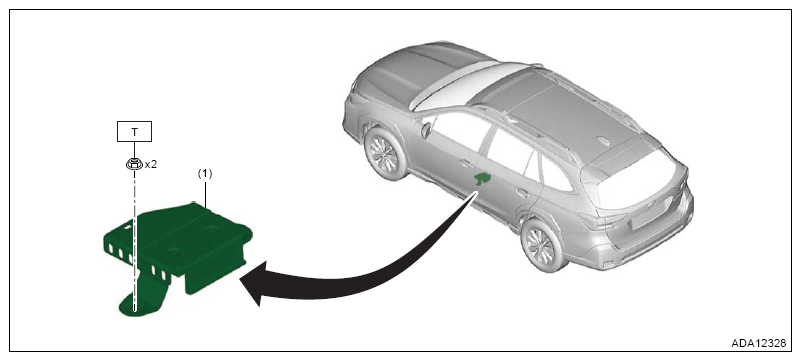

NOTE: The illustration shows the OUTBACK model.
G16387785Courtesy of SUBARU OF AMERICA, INC.
(1) Sonar Control Module ASSY

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
