Side Impact Sensor (Center Pillar)

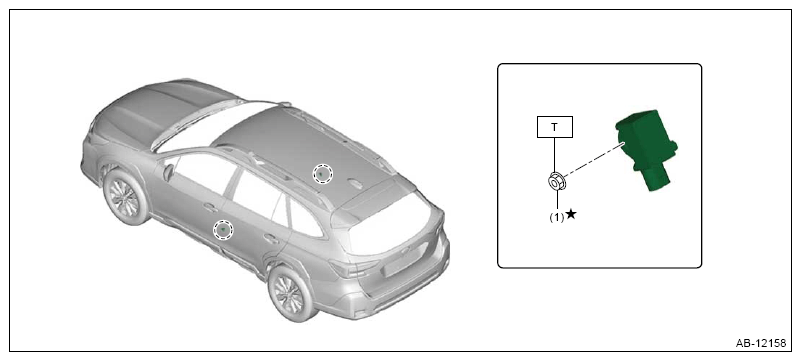

Side Impact Sensor (Center Pillar)
NOTE:
The illustration shows the OUTBACK model.
Courtesy of SUBARU OF AMERICA, INC.
(1)
Nut
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
