MT Gear Shift Lever: Disassembly

NOTE: Disassembly is available only for 5MT model.
  1. Remove the lock wires.

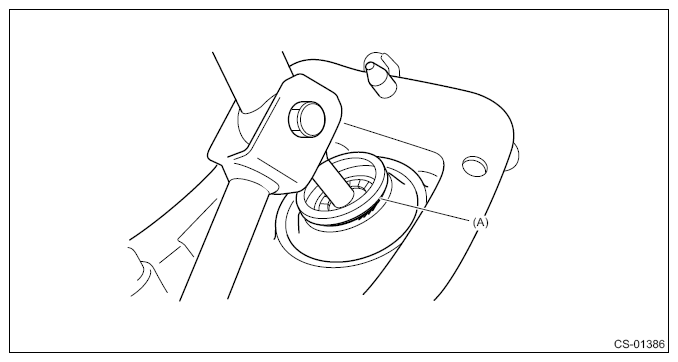

    G16350122Courtesy of SUBARU OF AMERICA, INC.
    (A) Lock wire
  2. Remove the rod from gear shift lever.

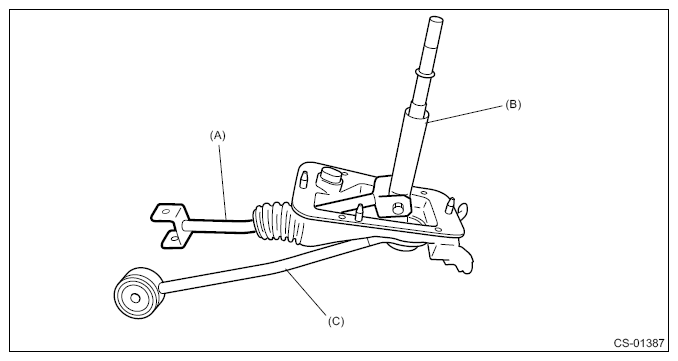

    G16350123Courtesy of SUBARU OF AMERICA, INC.
    (A) Rod
    (B) Lever
    (C) Stay
  3. Separate the rod and inner boot.
  4. Remove the snap ring from the stay.

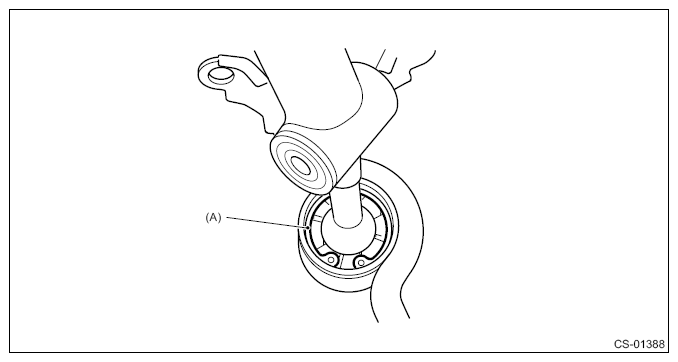

    G16350124Courtesy of SUBARU OF AMERICA, INC.
    (A) Snap ring
  5. Separate the gear shift lever and the stay.
    G08317608Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the boot and bushing B from the gear shift lever.
    G16350126Courtesy of SUBARU OF AMERICA, INC.
    (A) O-ring
    (B) Bushing B
  7. Remove the spring pin, and then remove the bushing and snap ring.
    G16350127Courtesy of SUBARU OF AMERICA, INC.
    (A) Spring pin
    (B) Ball joint
    (C) Snap ring
  8. Remove the boss from the joint.
    G08317611Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the bushing and spacer from the boss.
    G16350129Courtesy of SUBARU OF AMERICA, INC.
    (A) Bushing
    (B) Spacer
  10. Remove the bushing and cushion rubber from the stay.
    G16350130Courtesy of SUBARU OF AMERICA, INC.
    (A) Bushing
    (B) Stay
    (C) Cushion rubber
