MT Gear Shift Cable: Removal

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
Lift up the vehicle.
Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .
Remove the rear exhaust pipe and center exhaust cover. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>REAR EXHAUST PIPE>REMOVAL .
Remove the cable clamp.

Courtesy of SUBARU OF AMERICA, INC.

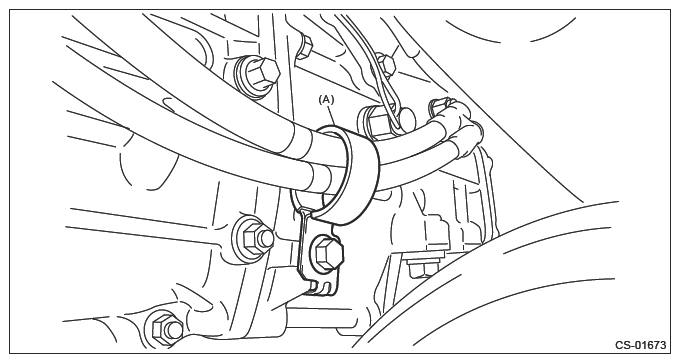

(A) Cable clamp
Remove the dust cover.

Courtesy of SUBARU OF AMERICA, INC.

(A) Dust cover
Remove the snap pin and washer.

Courtesy of SUBARU OF AMERICA, INC.

(A) Snap pin

(B) Washer
Remove the bolts holding the shift bracket.

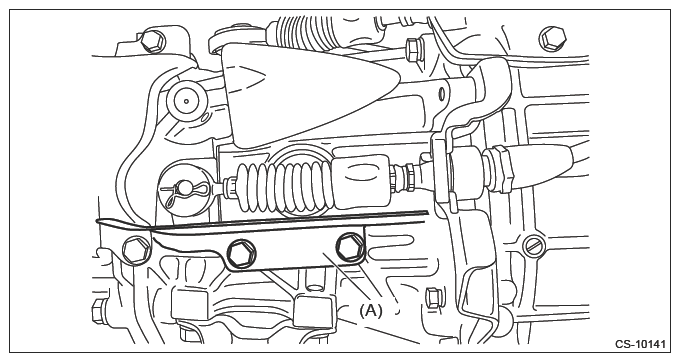

Courtesy of SUBARU OF AMERICA, INC.

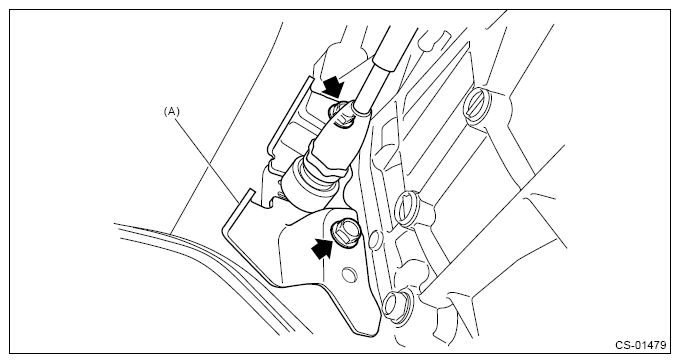

(A) Shift bracket
Remove the shift bracket together with the MT gear shift cable.
CAUTION: Do not apply excessive load while holding the part (a).

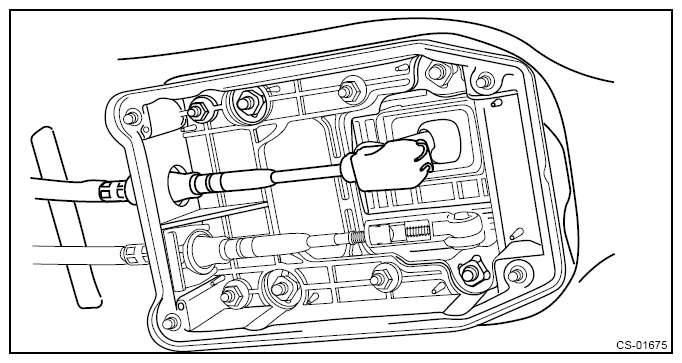

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

(A) MT gear shift cable

(B) Shift bracket
Remove the cable cover plate.

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the MT gear shift cable.
CAUTION:
- Be careful not to deform the cable inner.
- Do not apply excessive load while holding the part (a).
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Pull out down the MT gear shift cable to spread the spring.

Courtesy of SUBARU OF AMERICA, INC.

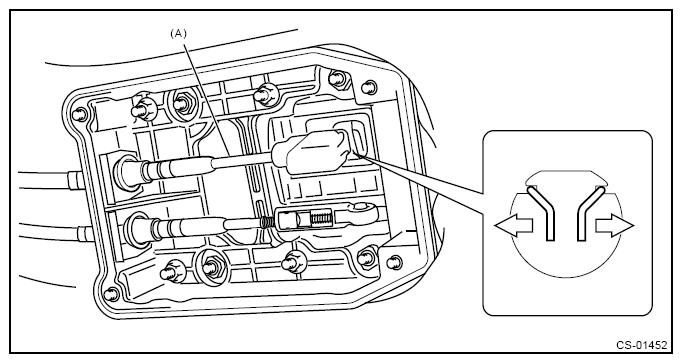

(A) MT gear shift cable
Remove the clamp.

Courtesy of SUBARU OF AMERICA, INC.

(A) Clamp

(B) MT gear shift cable
Pull out the MT gear shift cable.
CAUTION:
- Do not bend MT gear shift cable at a sharp angle.
- Do not twist the cable inner excessively.
Courtesy of SUBARU OF AMERICA, INC.

(A)	Snap pin
(B)	Washer

(A)	MT gear shift cable
(B)	Shift bracket

(A)	Clamp
(B)	MT gear shift cable
