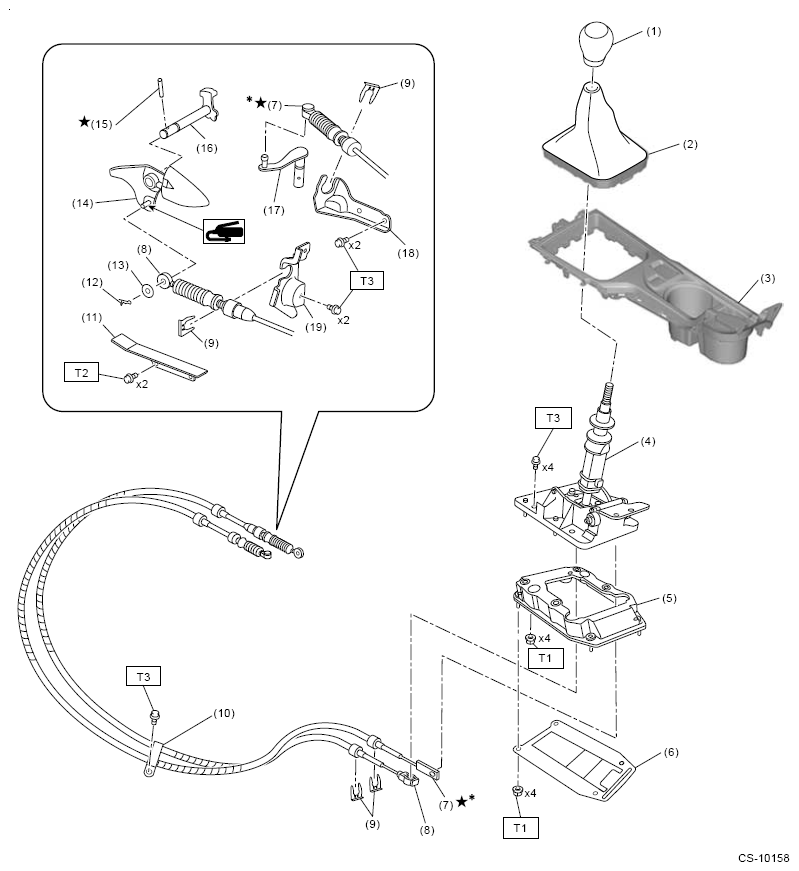

6MT Gear Shift Lever
| (1) | Shift knob |
| (2) | Shift boot |
| (3) | Cover ASSY - front MT |
| (4) | Gear shift lever ASSY |
| (5) | Cable cover ASSY |
| (6) | Cable cover plate |
| (7) | MT gear select cable |
| (8) | MT gear shift cable |
| (9) | Clamp |
| (10) | Cable clamp |
| (11) | Dust cover |
| (12) | Snap pin |
| (13) | Washer |
| (14) | Shift lever COMPL |
| (15) | Spring pin |
| (16) | Shifter arm No. 2 |
| (17) | Selector lever COMPL |
| (18) | Select bracket |
| (19) | Shift bracket |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 15 (1.5, 11.1)
T3: 18 (1.8, 13.3)
*: Always use new MT gear select cable if the cable is removed from selector lever COMPL of transmission side.
