Front Suspension System And Wheel Alignment: Stabilizer: Removal: Stabilizer

1. Lift up the vehicle.
2. Remove the under cover - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
3. Remove the crossmember support - rear. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
4. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .

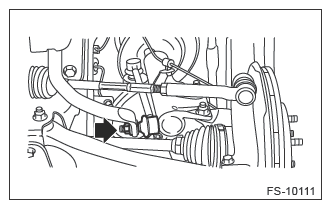

5. Remove the left and right stabilizer links (bottom part).

   Courtesy of SUBARU OF AMERICA, INC.

6. Remove the clamp - stabilizer bushing on the left and right sides.
   • Impreza model
     NOTE: The left and right clamp - stabilizer bushings of Impreza model differ in shape.

     Courtesy of SUBARU OF AMERICA, INC.

   • Crosstrek model

   Courtesy of SUBARU OF AMERICA, INC.

7. Slide the stabilizer to the right side of the vehicle.

   Courtesy of SUBARU OF AMERICA, INC.

8. Remove the stabilizer by moving it in the direction of arrow.

Courtesy of SUBARU OF AMERICA, INC.
