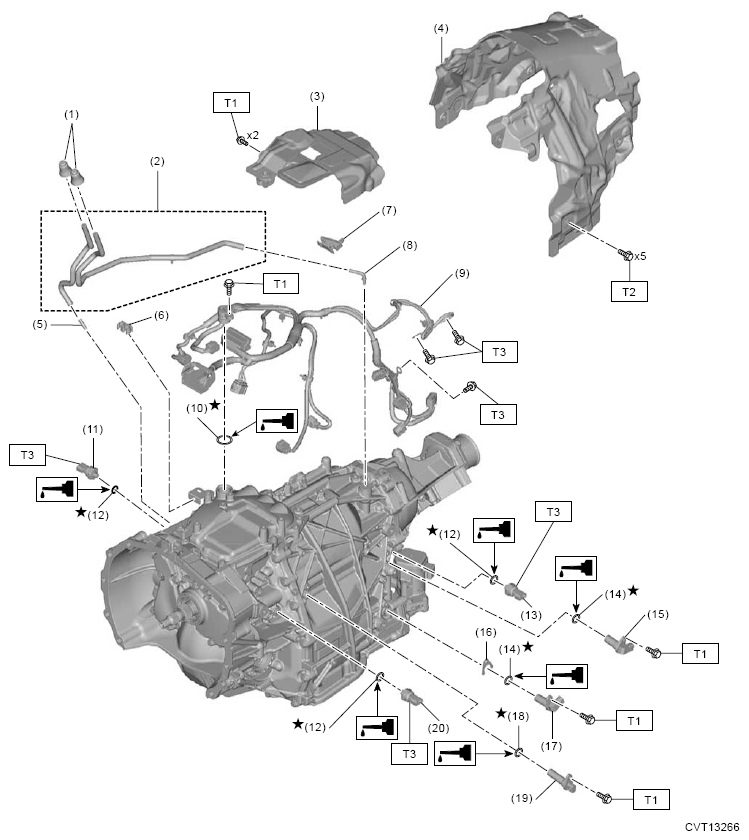

Transmission Harness And Sensor
| (1) | Air breather cap |
| (2) | Air breather hose |
| (3) | Transmission case cover (front) |
| (4) | Transmission case cover (rear) |
| (5) | Air breather nipple |
| (6) | Air breather hose bracket |
| (7) | Air breather hose bracket |
| (8) | Air breather nipple |
| (9) | Transmission harness |
| (10) | O-ring |
| (11) | Primary pressure sensor |
| (12) | O-ring |
| (13) | Secondary pressure sensor |
| (14) | O-ring |
| (15) | Primary speed sensor |
| (16) | Spacer |
| (17) | Secondary speed sensor |
| (18) | O-ring |
| (19) | Turbine speed sensor |
| (20) | Line pressure sensor |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7 (0.7, 5.2)
T2: 8 (0.8, 5.9)
T3: 13 (1.3, 9.6)
