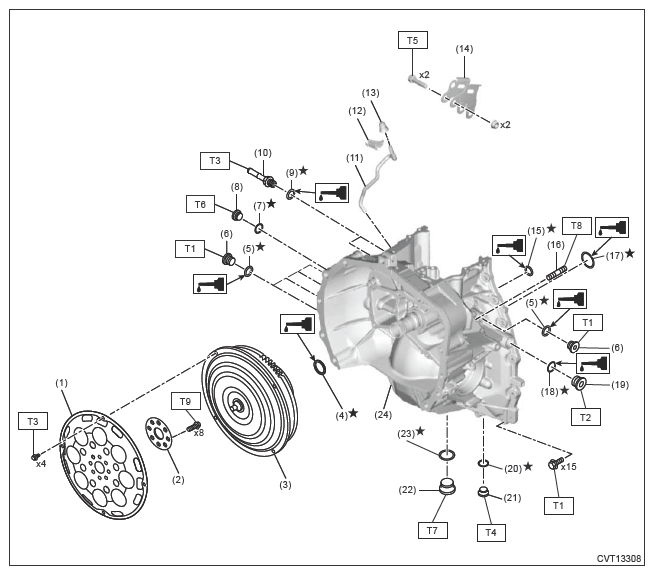

Torque Converter & Converter Case
| (1) | Drive plate |
| (2) | Reinforcement drive plate |
| (3) | Torque converter |
| (4) | Seal ring |
| (5) | O-ring |
| (6) | Plug |
| (7) | Gasket |
| (8) | Filler plug |
| (9) | O-ring |
| (10) | Oil cooler pipe |
| (11) | Air breather hose |
| (12) | Air breather hose bracket |
| (13) | Air breather cap |
| (14) | Pitching stopper bracket |
| (15) | O-ring |
| (16) | Stud bolt |
| (17) | O-ring |
| (18) | O-ring |
| (19) | Plug |
| (20) | Gasket |
| (21) | Overflow plug |
| (22) | Drain plug |
| (23) | Gasket |
| (24) | Converter case |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 22 (2.2, 16.2)
T2: 22.5 (2.3, 16.6)
T3: 25 (2.5, 18.4)
T4: 40 (4.1, 29.5)
T5: 41 (4.2, 30.2)
T6: 50 (5.1, 36.9)
T7: 70 (7.1, 51.6)
T8: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 (EXCEPT FOR WILDERNESS))>CONVERTER CASE>ASSEMBLY .
T9: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 (EXCEPT FOR WILDERNESS))>DRIVE PLATE>INSTALLATION .
