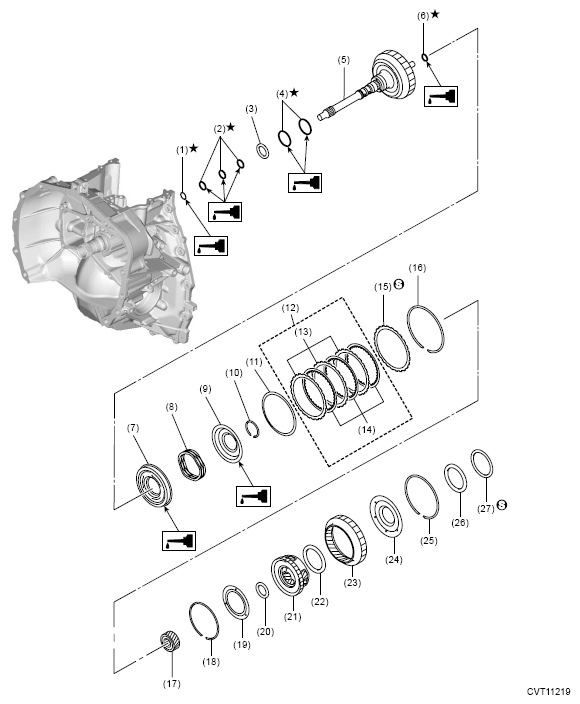

Forward Clutch
| (1) | O-ring |
| (2) | Seal ring |
| (3) | Thrust bearing |
| (4) | Seal ring |
| (5) | Forward clutch drum |
| (6) | Seal ring |
| (7) | Forward clutch piston |
| (8) | Return spring |
| (9) | Chamber |
| (10) | Snap ring |
| (11) | Dish plate |
| (12) | Forward clutch |
| (13) | Driven plate |
| (14) | Drive plate |
| (15) | Retaining plate |
| (16) | Snap ring |
| (17) | Sun gear |
| (18) | Snap ring |
| (19) | Balance oil guide |
| (20) | Thrust bearing |
| (21) | Planetary carrier |
| (22) | Thrust bearing |
| (23) | Internal gear |
| (24) | Thrust gear plate |
| (25) | Snap ring |
| (26) | Thrust bearing |
| (27) | Washer |
