Components With Torque Specifications: Notes

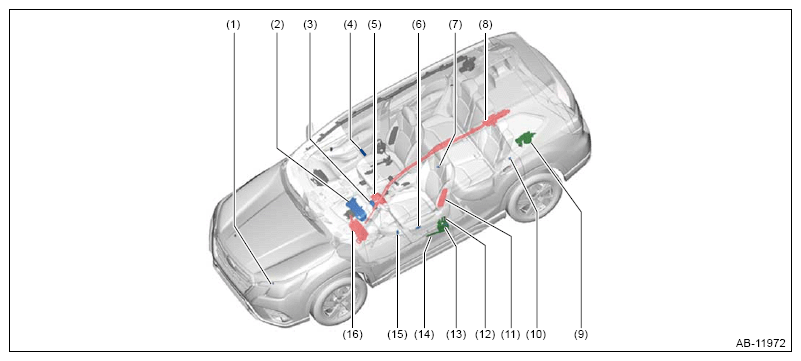

| (1) | Front impact sensor LH |
| (2) | Airbag warning light (in combination meter) |
| (3) | Steering roll connector |
| (4) | Airbag ON/OFF indicator light (in warning box) |
| (5) | Driver's airbag module |
| (6) | Seat position sensor LH |
| (7) | Side impact sensor (under the rear center seat) |
| (8) | Curtain airbag module LH |
| (9) | Rear seatbelt pretensioner LH |
| (10) | Side impact sensor LH (rear wheel house) |
| (11) | Side airbag module LH |
| (12) | Front seat belt pretensioner & adaptive force limiter LH |
| (13) | Side impact sensor LH (center pillar) |
| (14) | Lap seat belt pretensioner LH |
| (15) | Side impact sensor LH (front door) |
| (16) | Knee airbag module |

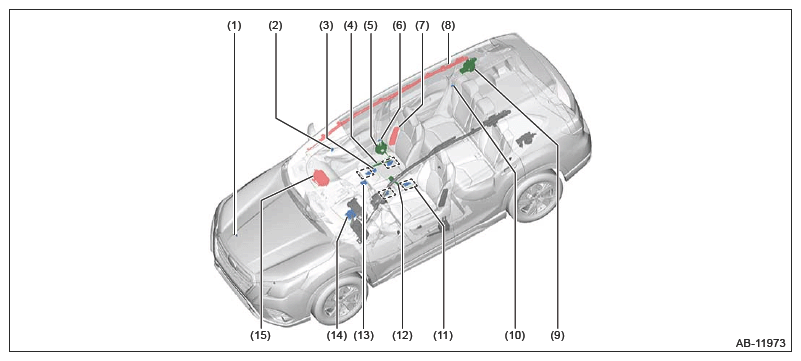

| (1) | Front impact sensor RH |
| (2) | Side impact sensor RH (front door) |
| (3) | Seat position sensor RH |
| (4) | Lap seat belt pretensioner RH |
| (5) | Front seat belt pretensioner & adaptive force limiter RH |
| (6) | Side impact sensor RH (center pillar) |
| (7) | Side airbag module RH |
| (8) | Curtain airbag module RH |
| (9) | Rear seatbelt pretensioner RH |
| (10) | Side impact sensor RH (rear wheel house) |
| (11) | Occupant detection sensor (4 pieces) |
| (12) | Buckle switch (passenger's seat) |
| (13) | Occupant detection control module |
| (14) | Airbag control module |
| (15) | Passenger's airbag module |
NOTE:
For detailed layout drawings on the occupant detection control module, occupant detection sensor and seat position sensor, refer to "OCCUPANT DETECTION (DIAGNOSTICS)". Ref. to OCCUPANT DETECTIONS (DIAGNOSTICS)>ELECTRICAL COMPONENT LOCATION>LOCATION
.
