Component Description

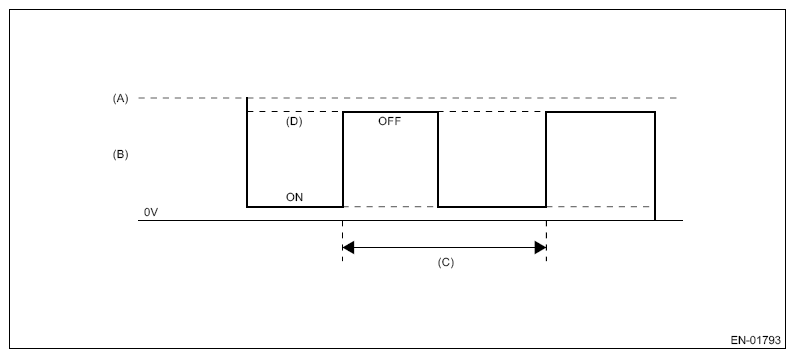

G16345238Courtesy of SUBARU OF AMERICA, INC.
(A) Battery voltage
(B) Output voltage of the rear oxygen sensor heater
(C) 256 ms (cycles)
(D) High error
