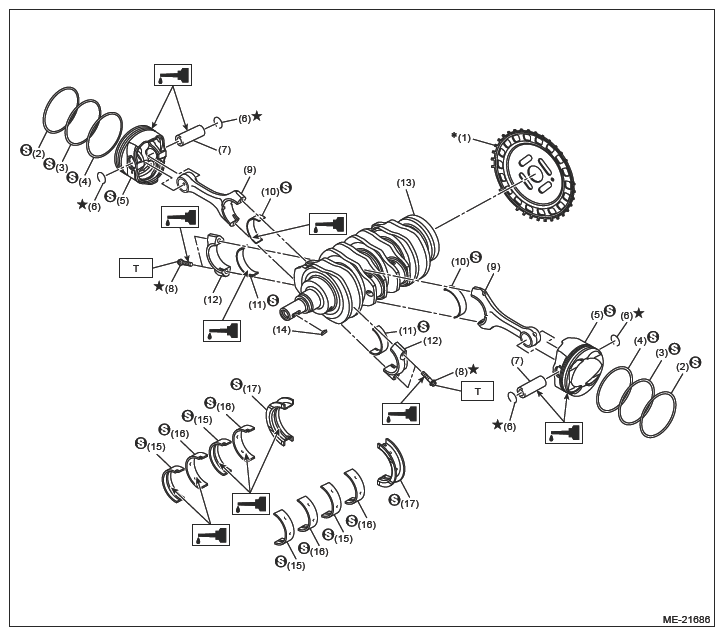

Crankshaft And Piston
| (1) | Crankshaft position sensor plate |
| (2) | Top ring |
| (3) | Second ring |
| (4) | Oil ring |
| (5) | Piston |
| (6) | Circlip |
| (7) | Piston pin |
| (8) | Connecting rod cap bolt |
| (9) | Connecting rod |
| (10) | Connecting rod bearing (connecting rod side) |
| (11) | Connecting rod bearing (connecting rod cap side) |
| (12) | Connecting rod cap |
| (13) | Crankshaft |
| (14) | Woodruff key |
| (15) | Crankshaft bearing #1, #3 |
| (16) | Crankshaft bearing #2, #4 |
| (17) | Crankshaft bearing #5 |
| *Tightened together with the drive plate. | |
Tightening torque: N.m (kgf-m, ft-lb)
T: Ref. to MECHANICAL (H4DO)>CYLINDER BLOCK>INSTALLATION .
