Air Cleaner Case (Front)

  1. Install the resonator chamber (with cushion).
    NOTE: Perform this procedure when replacing the air cleaner case (front) and the resonator chamber (with cushion) with new parts.

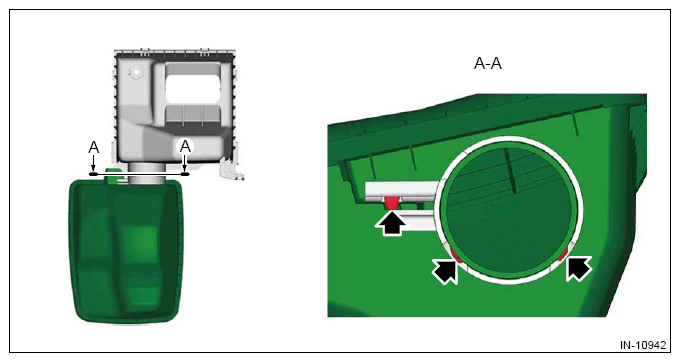

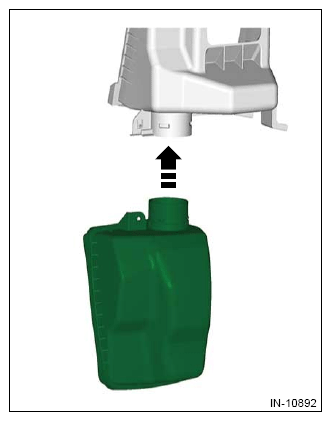

    1. Align the claws of the air cleaner case (front) and the resonator chamber (with cushion), and install the resonator chamber (with cushion).
    NOTE: After installation, make sure the claws are securely engaged in each position.
    G16335108Courtesy of SUBARU OF AMERICA, INC.
    G16341000Courtesy of SUBARU OF AMERICA, INC.

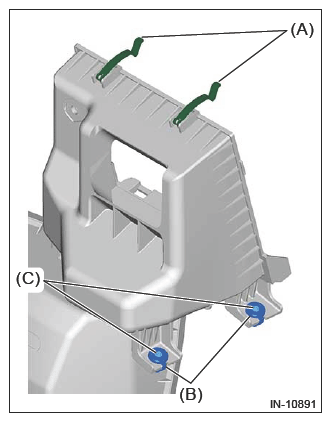

  2. Install clips (A), cushions (B), and spacers (C).
G16340996Courtesy of SUBARU OF AMERICA, INC.
