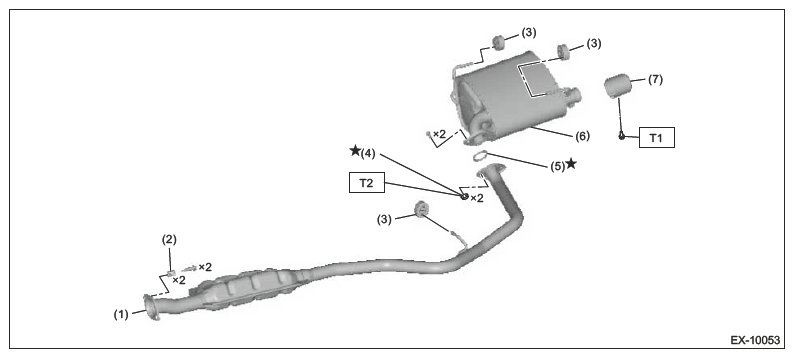

Rear Exhaust Pipe And Muffler
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Rear exhaust pipe |
| (2) |
Spring |
| (3) |
Cushion rubber |
| (4) |
Self-locking nut |
| (5) |
Gasket |
| (6) |
Muffler |
| (7) |
Muffler cutter (models with muffler cutter) |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.2 (0.6, 4.6)
T2: 48 (4.9, 35.4)
