Active Grille Shutter: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .
  3. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

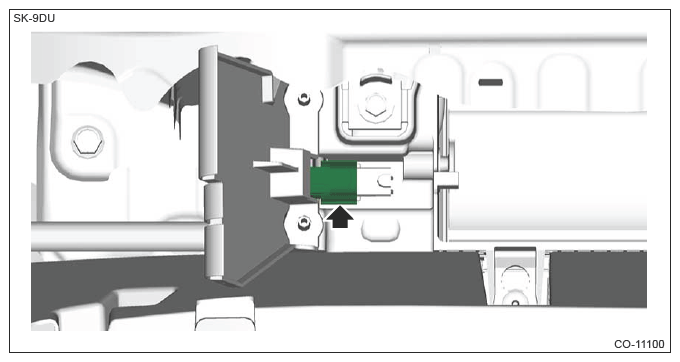

  4. Disconnect the connector from ambient sensor.
    G14384460Courtesy of SUBARU OF AMERICA, INC.

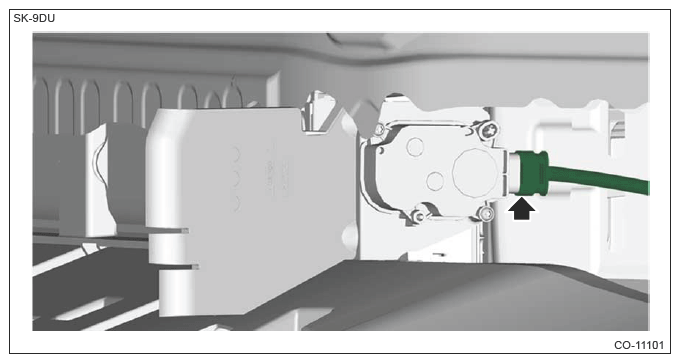

  5. Disconnect the connector from the active grille shutter actuator.
    G14384461Courtesy of SUBARU OF AMERICA, INC.

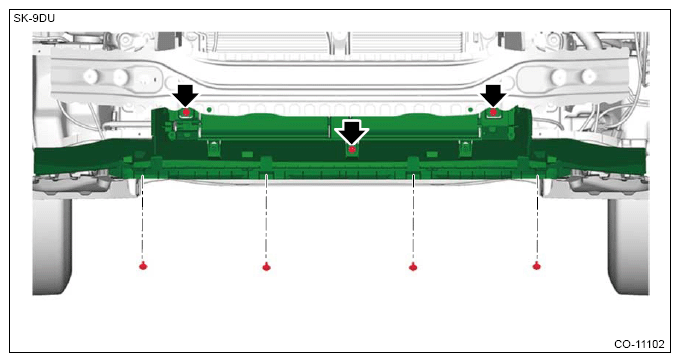

  6. Remove the active grille shutter and the bracket active grille shutter front as a unit.
    G14384462Courtesy of SUBARU OF AMERICA, INC.

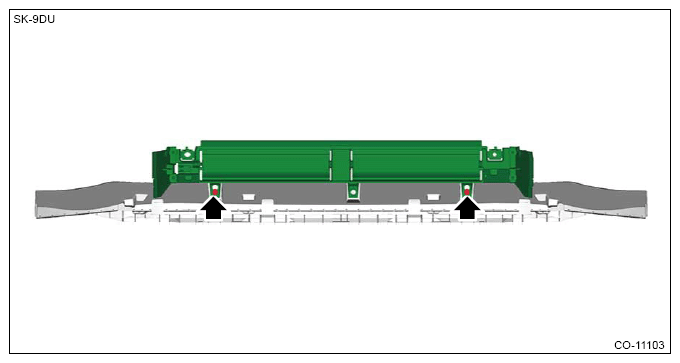

  7. Remove the active grille shutter from the bracket active grille shutter front.
    G14384463Courtesy of SUBARU OF AMERICA, INC.

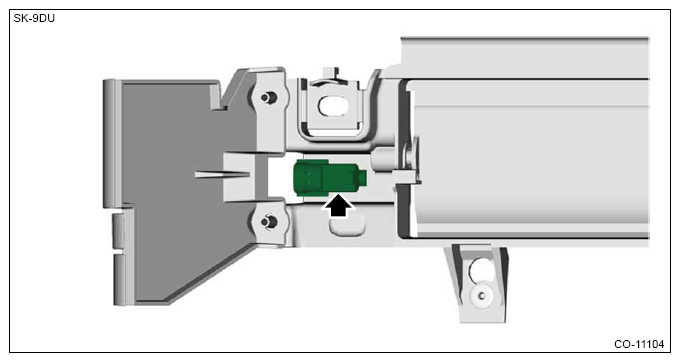

  8. Remove the ambient sensor.
G14384464Courtesy of SUBARU OF AMERICA, INC.
