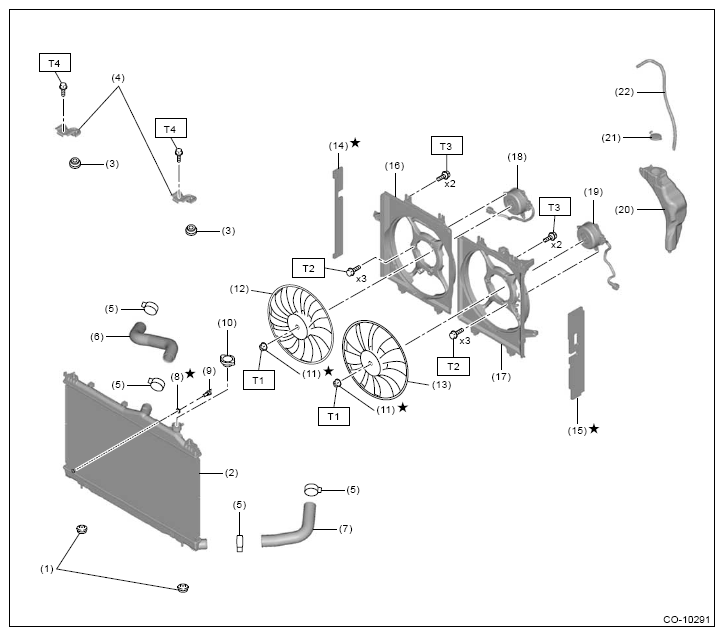

Radiator & Radiator Fan
| (1) | Radiator lower cushion |
| (2) | Radiator |
| (3) | Radiator upper cushion |
| (4) | Radiator upper bracket |
| (5) | Radiator hose clip |
| (6) | Radiator inlet hose |
| (7) | Radiator outlet hose |
| (8) | O-ring |
| (9) | Radiator drain plug |
| (10) | Radiator cap |
| (11) | Nut (with locking agent) |
| (12) | Radiator sub fan |
| (13) | Radiator main fan |
| (14) | Radiator sub fan shroud side gasket |
| (15) | Radiator main fan shroud side gasket |
| (16) | Radiator sub fan shroud |
| (17) | Radiator main fan shroud |
| (18) | Sub fan motor |
| (19) | Main fan motor |
| (20) | Reservoir tank |
| (21) | Reservoir tank cap |
| (22) | Over flow hose |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 3.4 (0.3, 2.5)
T2: 4.4 (0.4, 3.2)
T3: 7.5 (0.8, 5.5)
T4: 12 (1.2, 8.9)
