Brake Control System (Diagnostics): Electrical Component Location: Location

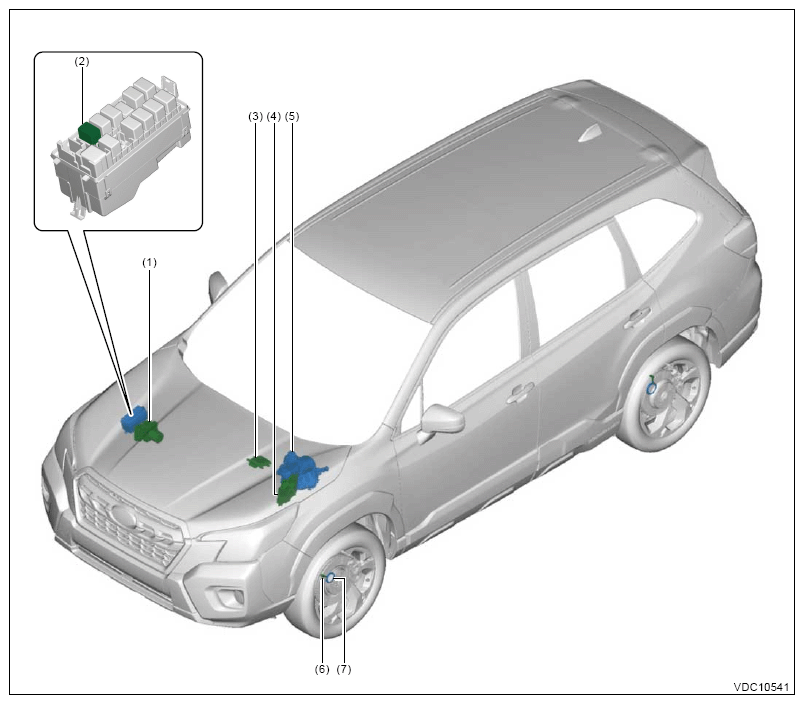

 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
VDC control module and hydraulic control unit (VDCCM & H/U) |
| (2) |
Stop light relay |
| (3) |
Transmission control module (TCM) |
| (4) |
Engine control module (ECM) |
| (5) |
Electric brake booster Control Module (master cylinder) |
| (6) |
ABS wheel speed sensor |
| (7) |
Magnetic encoder |

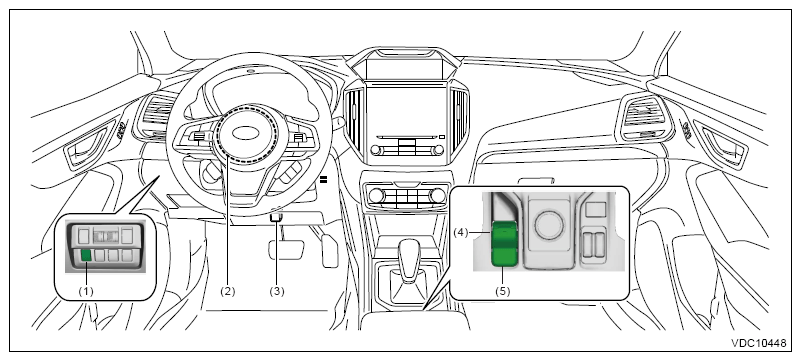

 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
VDC OFF switch (model with high grade X mode, model without X mode) |
| (2) |
Steering angle sensor |
| (3) |
Stop light and brake switch |
| (4) |
Electronic parking brake switch |
| (5) |
AVH switch |
NOTE:
For models with standard X mode, VDC OFF switch is integrated with X mode switch.
