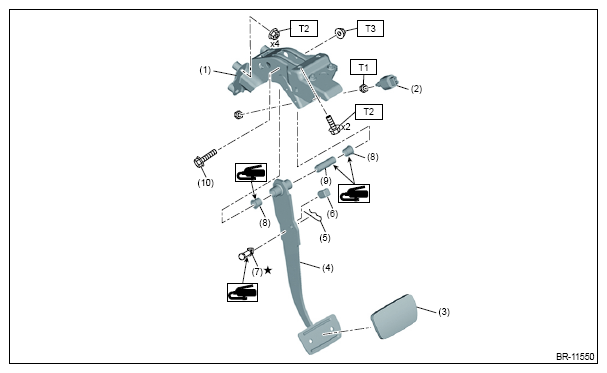

Brake Pedal
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Bracket pedal COMPL |
| (2) |
Stop light switch ASSY |
| (3) |
Pad (AT) pedal |
| (4) |
Pedal COMPL brake |
| (5) |
Snap pin |
| (6) |
Stopper |
| (7) |
Clevis pin |
| (8) |
Bushing |
| (9) |
Spacer |
| (10) |
Shaft bolt |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 8 (0.8, 5.9)
T2: 18 (1.8, 13.3)
T3: 30 (3.1, 22.1)
