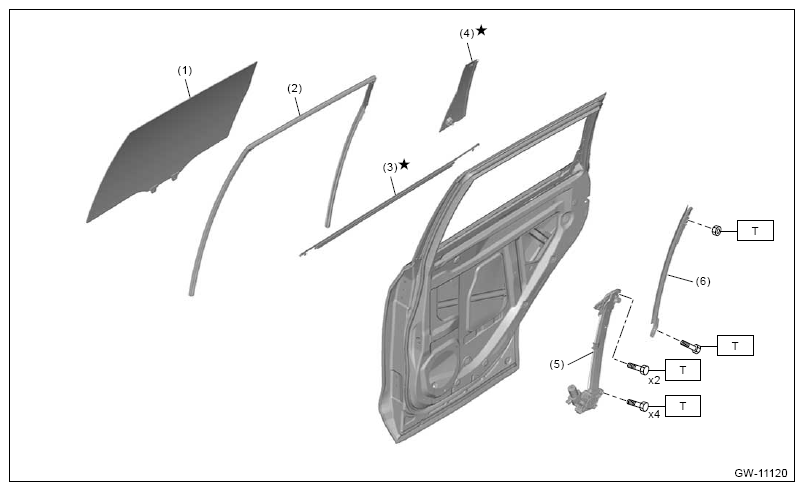

Rear Door Glass
 Courtesy of SUBARU
|
| (1) |
Glass ASSY rear door |
| (2) |
Running channel rear door |
| (3) |
Weather strip outer rear door |
| (4) |
Cover C pillar ASSY rear |
| (5) |
Regulator & motor ASSY rear |
| (6) |
Sash ASSY rear door lower |
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
