Power Seat Memory System (Diagnostics): Electrical Component Location: Location

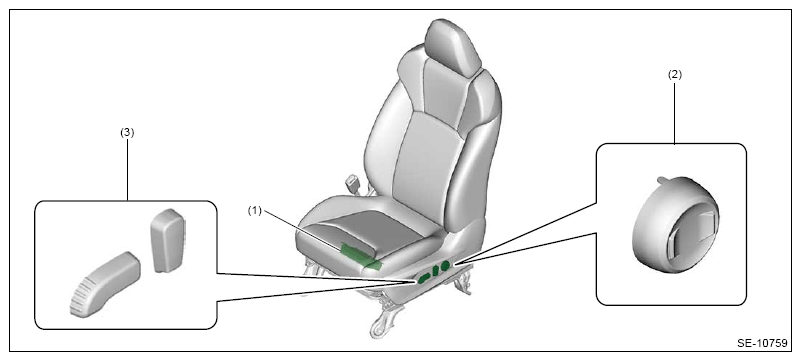

Courtesy of SUBARU OF AMERICA, INC.

(1)	Power Seat & Remote Control Mirror Control Module
(2)	Lumbar switch
(3)	Power seat switch

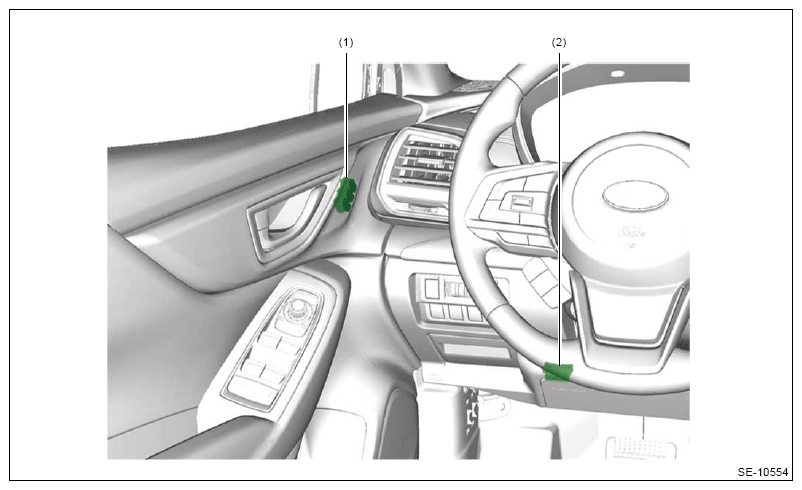

Courtesy of SUBARU OF AMERICA, INC.

(1)	Seat memory switch
(2)	Data link connector

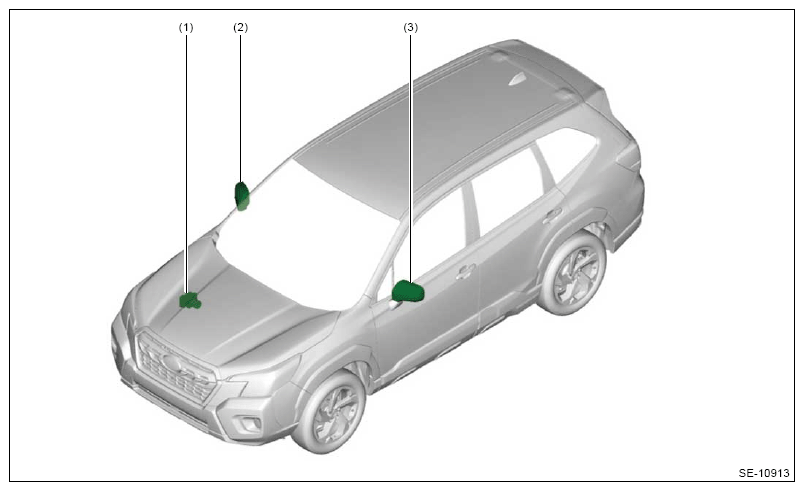

Courtesy of SUBARU OF AMERICA, INC.

(1)	VDC Control Module
(2)	Outer mirror ASSY RH
(3)	Outer mirror ASSY LH
