Unit And Rear Gate

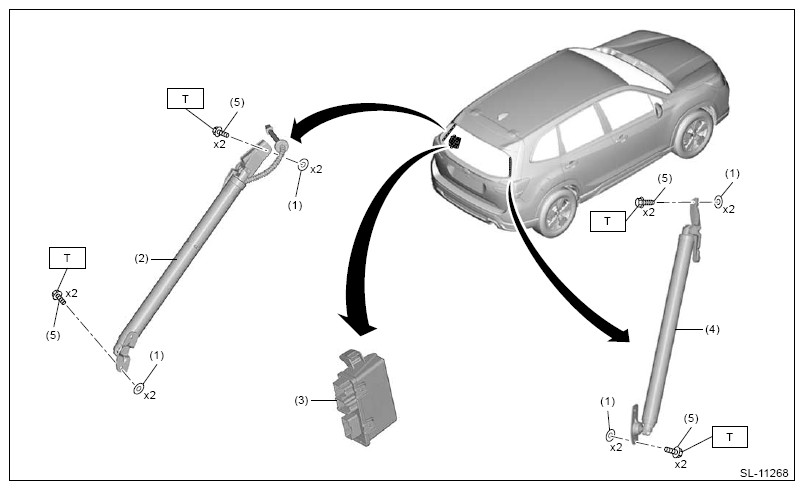

Tightening torque: N.m (kgf-m, ft-lb)
T: 13 (1.3, 9.6)
| (1) | Washer |
| (2) | Power rear gate drive unit |
| (3) | Power rear gate Control Module |
| (4) | Power rear gate stay |
| (5) | Flange bolt |

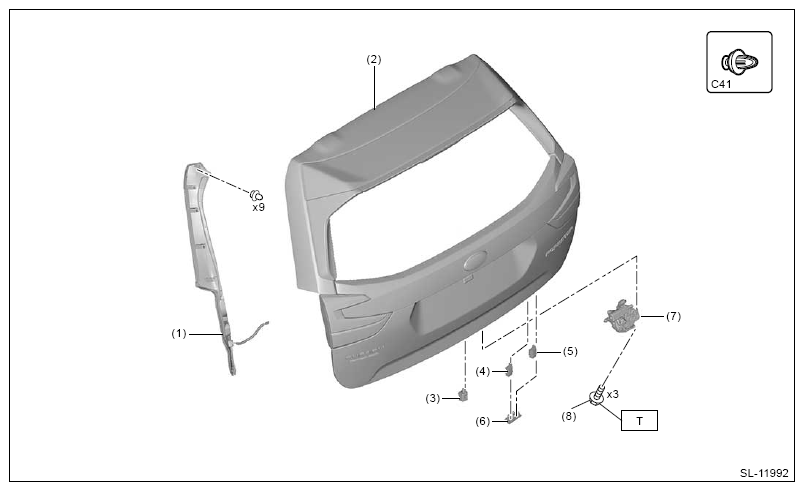

Tightening torque: N.m (kgf-m, ft-lb)
T: 25 (2.5, 18.4)
| (1) | Power rear gate touch sensor |
| (2) | Panel rear gate |
| (3) | Power rear gate buzzer |
| (4) | Power rear gate lock switch |
| (5) | Power rear gate inner switch |
| (6) | Cap panel rear gate switch |
| (7) | Power rear gate auto closer |
| (8) | Flange bolt |
