Front Hood Lock Assembly: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct (rear). Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>REMOVAL .
  3. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .
  4. Remove the clips, and remove the bracket grille front.
    G14394452Courtesy of SUBARU OF AMERICA, INC.

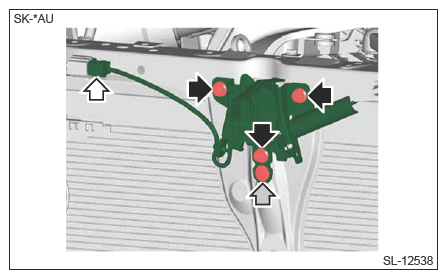

  5. Remove the lock assembly front hood.
    1. Disconnect the connector.
    2. Remove the bolts and clips, and remove the lock assembly front hood.
      G14411634Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the cable assembly front hood from the guide.
      G13226899Courtesy of SUBARU OF AMERICA, INC.
