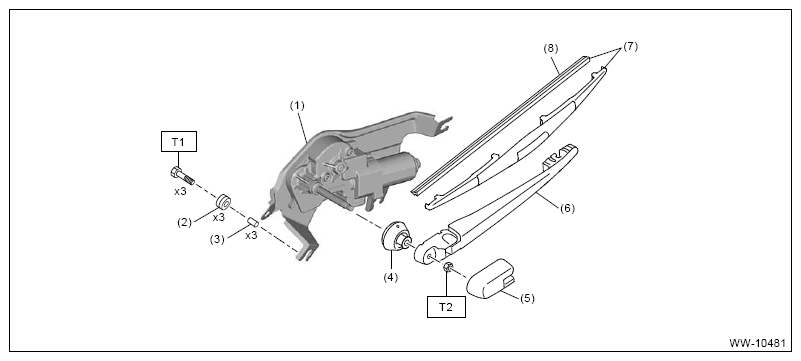

Rear Wiper
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Motor ASSY rear wiper |
| (2) |
Rubber |
| (3) |
Collar |
| (4) |
Cap pivot wiper |
| (5) |
Cover rear wiper arm |
| (6) |
Arm ASSY rear wiper |
| (7) |
Blade ASSY rear wiper |
| (8) |
Rubber rear wiper |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: 8 (0.8, 5.9)
