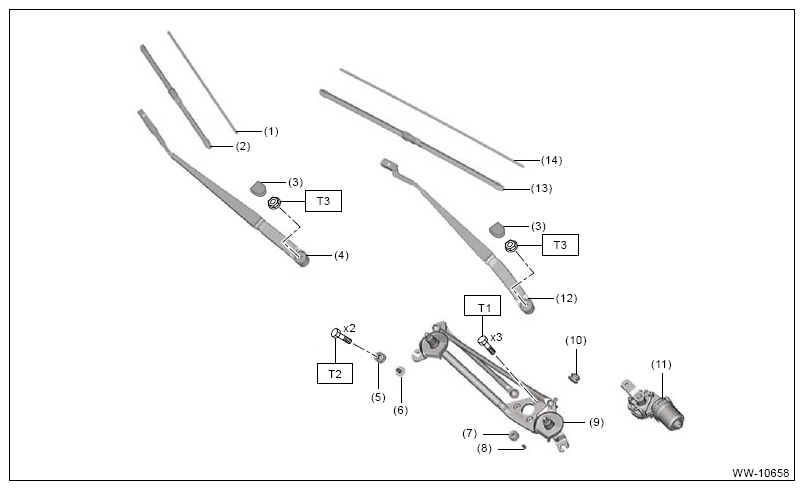

Front Wiper
| (1) | Rubber windshield wiper assistor |
| (2) | Blade windshield wiper assistor |
| (3) | Cover windshield wiper |
| (4) | Arm ASSY windshield wiper assistor |
| (5) | Rubber |
| (6) | Collar |
| (7) | Rubber |
| (8) | Collar |
| (9) | Link ASSY windshield wiper |
| (10) | Cushion windshield wiper |
| (11) | Motor ASSY windshield wiper |
| (12) | Arm ASSY windshield wiper driver |
| (13) | Blade windshield wiper driver |
| (14) | Rubber windshield wiper driver |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5.4 (0.6, 4.0)
T2: 6 (0.6, 4.4)
T3: 26 (2.7, 19.2)
