Driver Monitor System (Diagnostics): Electrical Component Location: Location

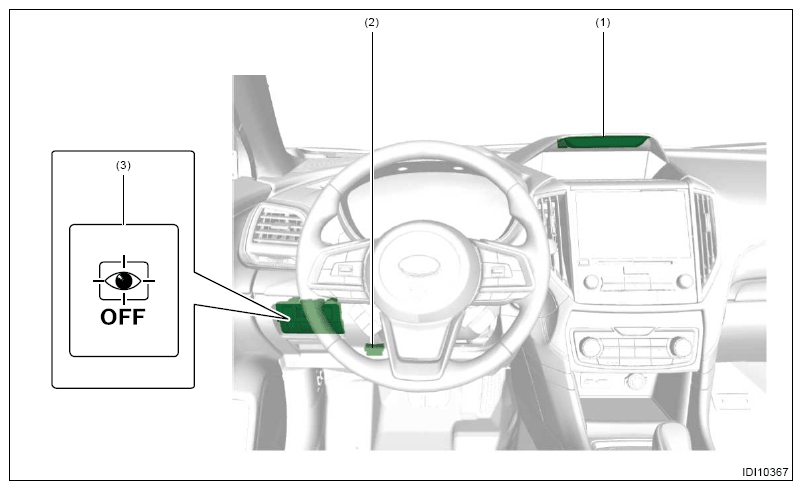

G16346042

Courtesy of SUBARU OF AMERICA, INC.

(1)	Driver Monitoring Unit
(2)	Data link connector
(3)	Driver Monitoring System OFF Switch
