Front Fog Light Assembly: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  4. Turn over the mud guard front.
    1. Remove the clip.
    2. Remove the screws, and turn over the mud guard front.
      G14394715Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the fog light assembly front.
    1. Disconnect the connector.
    2. Remove the bolt and clip.
    3. Remove the guides, then remove the fog light assembly front.

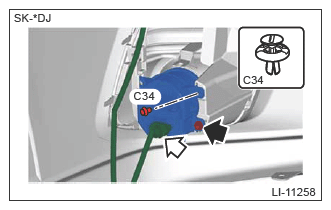

      • Except for vertical rectangular LED type
        G14394716Courtesy of SUBARU OF AMERICA, INC.

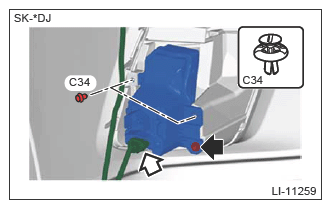

      • Vertical rectangular LED type
        G14394717Courtesy of SUBARU OF AMERICA, INC.
