Entertainment System: Camera: Removal: Front

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .
  3. Remove the front view camera assembly.
    CAUTION: Do not drop or apply any impact to the front view camera because it is a precision equipment  .

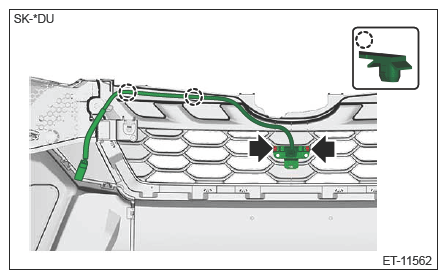

    1. Release the claws and then remove the cable clip.
    2. Remove the screws and remove the front view camera assembly.
    G14411294Courtesy of SUBARU OF AMERICA, INC.
