Audio And Navigation System

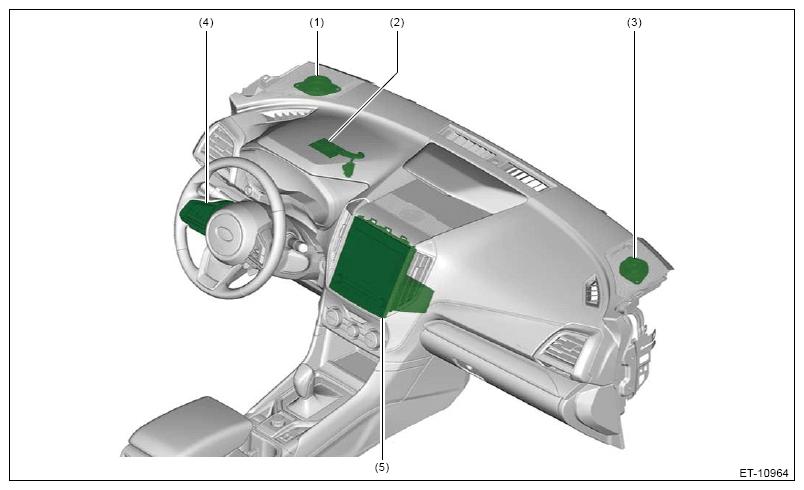

G16339085Courtesy of SUBARU OF AMERICA, INC.
(1) Speaker ASSY tweeter LH
(2) GPS antenna ASSY
(3) Speaker ASSY tweeter RH
(4) Satellite switch ASSY
(5) Audio ASSY or navigation ASSY

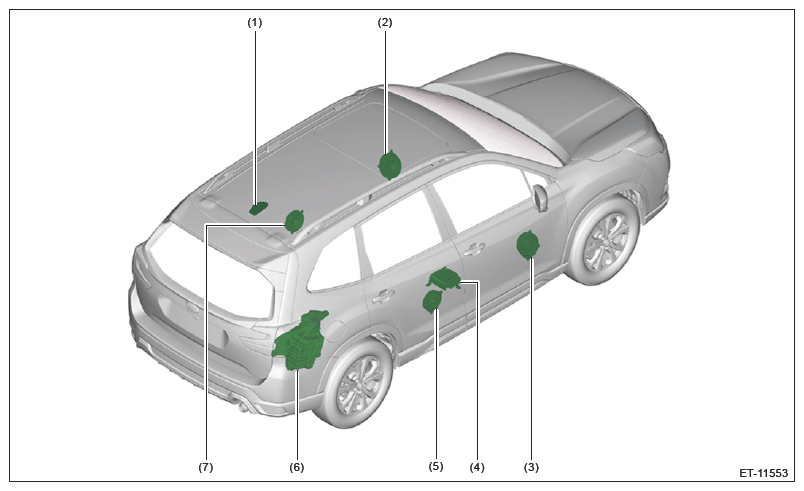

G16339086Courtesy of SUBARU OF AMERICA, INC.
(1) Antenna ASSY roof
(2) Speaker ASSY front LH
(3) Speaker ASSY front RH
(4) Power amplifier ASSY
(5) Speaker ASSY rear RH
(6) Speaker ASSY woofer
(7) Speaker ASSY rear LH
