Example Of DTC Data Not Received

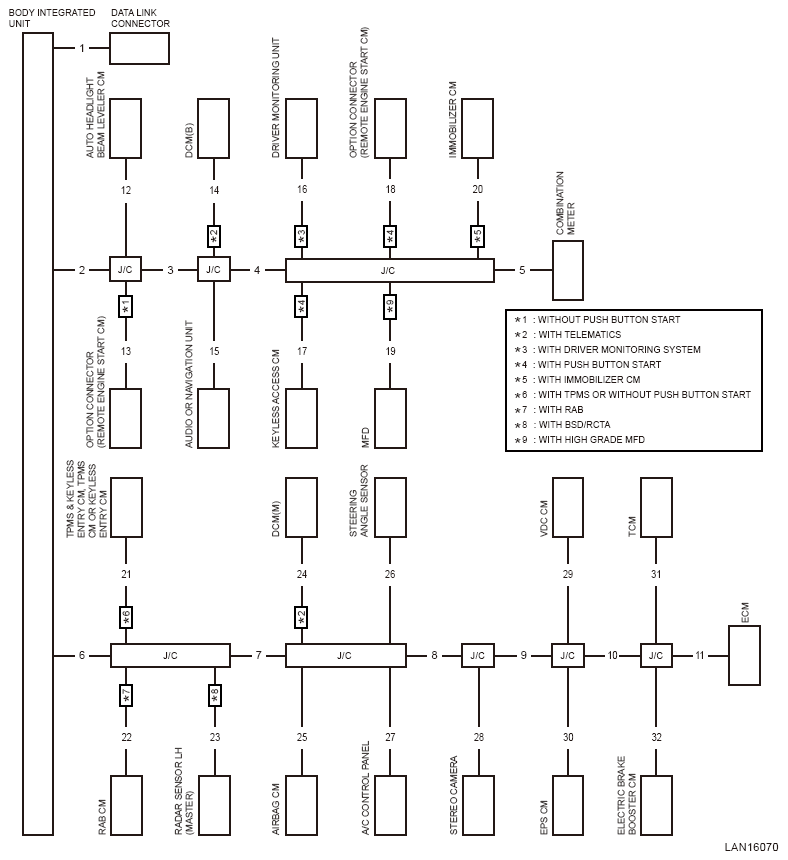

G16345654Courtesy of SUBARU OF AMERICA, INC.

No. 14 DCM (BODY CAN) vicinity

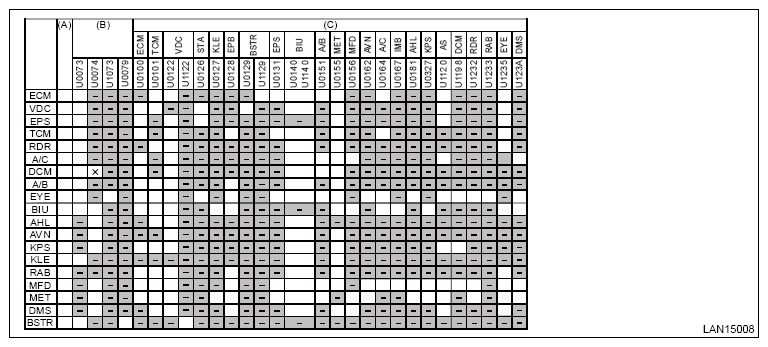

G14415559Courtesy of SUBARU OF AMERICA, INC.

No. 26 steering angle sensor vicinity

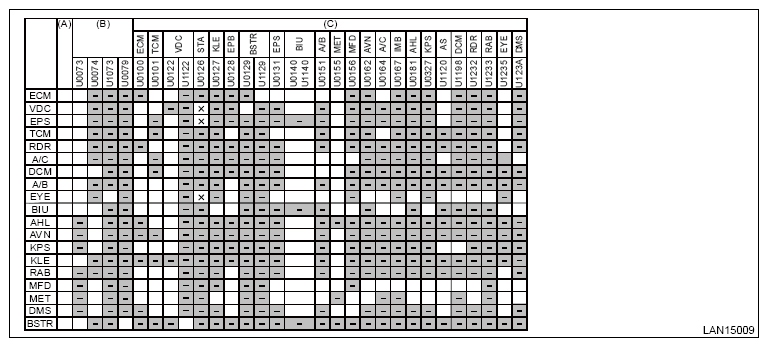

G14415560Courtesy of SUBARU OF AMERICA, INC.
