Keyless Access With Push Button Start System: Wiring Diagram

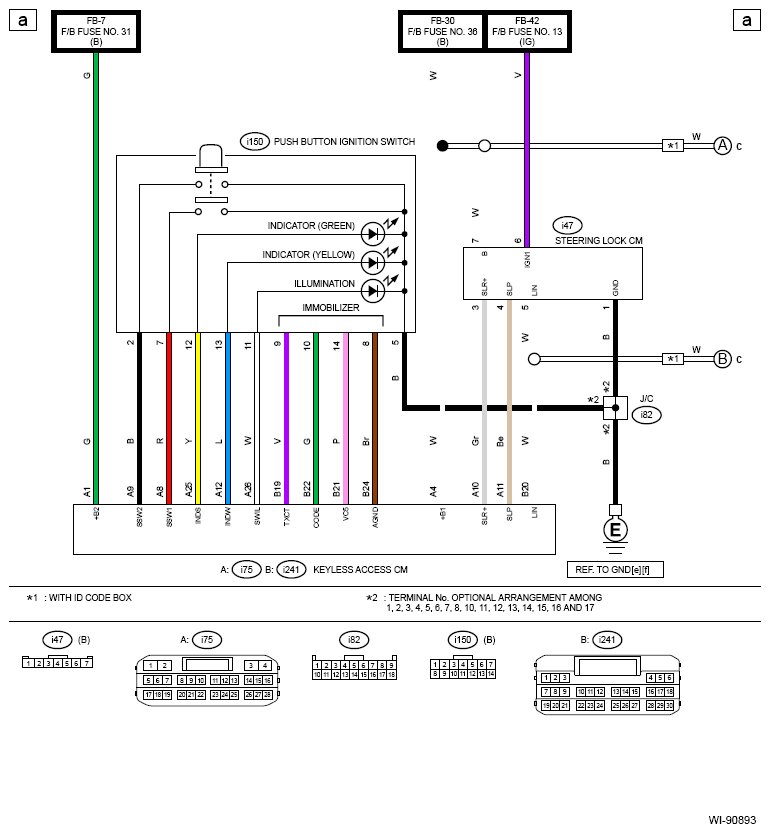

G13874784

Courtesy of SUBARU OF AMERICA, INC.

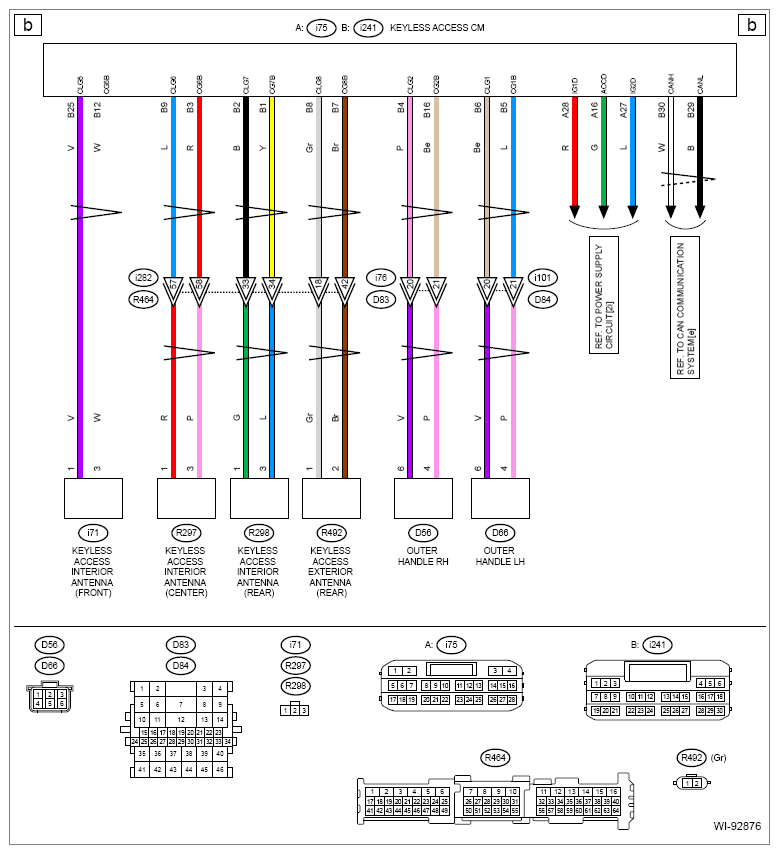

G14411880

Courtesy of SUBARU OF AMERICA, INC.

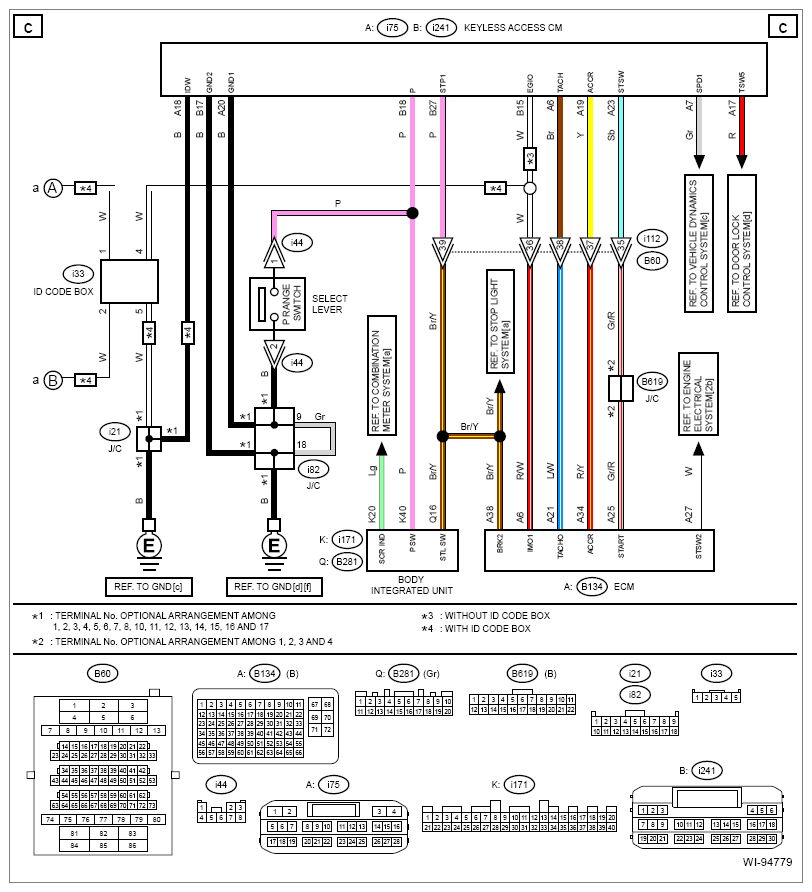

G16340052

Courtesy of SUBARU OF AMERICA, INC.
